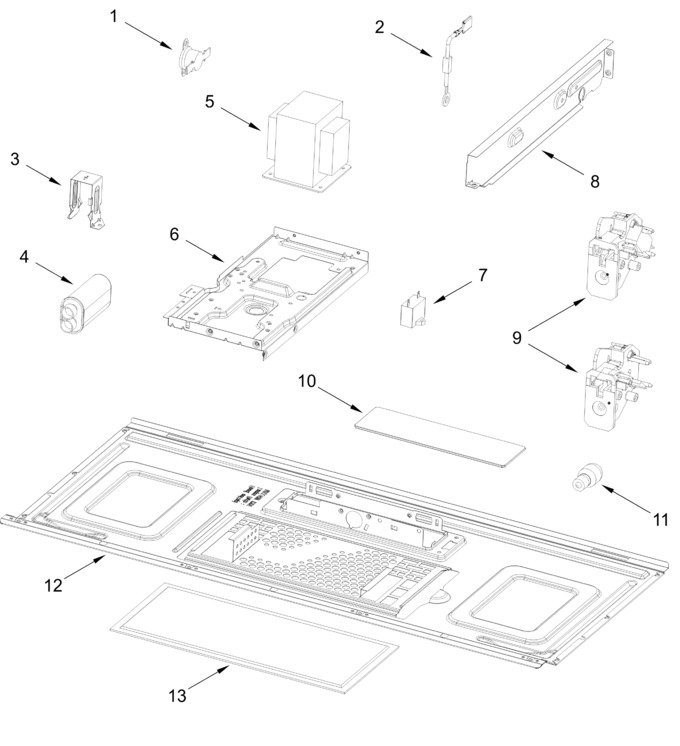

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 43.63 | ||||
| 2 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 34.86 | ||||
| 3 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 4 | WPW10574736 | Capacitor, High Voltage (Replaces: W10574736) |
|
$ 179.12 | |||||
| 5 | W11759254 | Transformer, High Voltage (Replaces: W11739997) |
|
$ 115.46 | |||||
| 6 | W11520831 | Chassis |
|
Immediately | $ 65.88 | ||||
| 7 | W11405830 | Capacitor, Hood Motor |
|
- | |||||
| 8 | W11521327 | Support, Ntc |
|
$ 65.92 | |||||
| 9 | W11551558 | Interlock Assembly (includes Switches) (Replaces: W11433682) |
|
Immediately | $ 33.70 | ||||
| 10 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 350.94 | |||||
| 11 | W11520384 | Lamp, Halogen |
|
Immediately | $ 10.41 | ||||
| 12 | W11450485 | Plate, Bottom |
|
$ 62.97 | |||||
| 13 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 |
