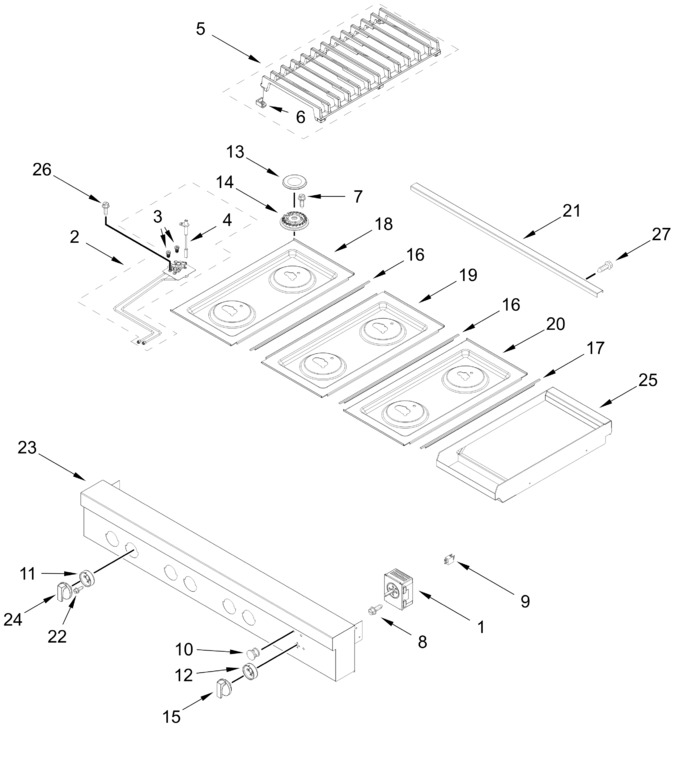

Diagram for Burner Box And Griddle Parts
Burner Box And Griddle Parts

Diagram for Cooktop, Burner, And Grate Parts
Cooktop, Burner, And Grate Parts

No Diagram Image Available
Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

2 W11337062 Orifice Holder Assembly   (Replaces: W10892771) In-Stock Immediately $ 128.25

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11580024 Igniter   (Replaces: W11238758) In-Stock Immediately $ 23.66

5 W11516449 Grate Assembly (black)   (Replaces: W11291180) Special Order $ 265.06

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

8 W10674068 Screw Special Order $ 24.39

9 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

10 W10294500 Lens, Indicator Light Special Order $ 7.69

11 W11317889 Bezel (stainless)   (Replaces: W11090284) Special Order $ 106.87

12 W11317890 Bezel, Griddle (stainless)   (Replaces: W11104967) Special Order $ 109.56

13 W11319224 Cap, Burner (black, Set Of 6)   (Replaces: W11121392) In-Stock Immediately $ 252.20

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11317536 Knob, Griddle (stainless)   (Replaces: W10891923) Special Order $ 148.63

16 W10271524 Trim, T-strip (black) Special Order $ 212.34

17 W10291193 Trim, L-strip Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11316701 Panel, Center Cooktop   (Replaces: W11038241) Special Order $ 502.01

20 W11316702 Panel, Center Cooktop   (Replaces: W11038249) Appelez-nous -
21 W11355761 Trim, Island Appelez-nous -
22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11632359 Console Panel   (Replaces: W11222273) Appelez-nous -
24 W11791681 Knob, Dual (stainless)   (Replaces: W11560135) Appelez-nous -
25 ARIED961ACF1DFB3262BCF1A3D165D9DAED Griddle Module Assembly (see Burner Box And Griddle Parts Page) Appelez-nous -
26 7101P42660 Screw Appelez-nous -
27 7101P33860 Screw Appelez-nous -
W11238756 Igniter In-Stock Immediately $ 67.96

W11516462 Grate Assembly (black)   (Replaces: W11291182) Special Order $ 265.07

W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

ARI13639990676F4BCB7E963B79A24869B9 (left Center Rear) Appelez-nous -
ARI5176DC7BCD528CAA83FE8E7749EF8817 (right Center) Appelez-nous -
ARI96BA0D36FA6A631E80C7BFCE86BF12CD (left Center) Appelez-nous -
W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

W11516481 Grate Assembly (black)   (Replaces: W11291184) Special Order $ 260.06

ARI822F6B264BB7DC41A7FB4C11C9B4EEB3 (left Front, Left Center Front, Right Center Front) Appelez-nous -
ARI770C969C5EB58E8C87C00F5B072F653D (left Rear And Right Center Rear) Appelez-nous -
ARI853D74B62D6355F5A369BA19932DE009 (all But Left Center Rear) Appelez-nous -
W11337065 Orifice Holder Assembly   (Replaces: W10892772) Special Order $ 128.73

W10892440 Orifice, Main (7.2k) Special Order $ 99.86

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86

W11337063 Orifice Holder Assembly   (Replaces: W10892486) In-Stock Immediately $ 128.27
