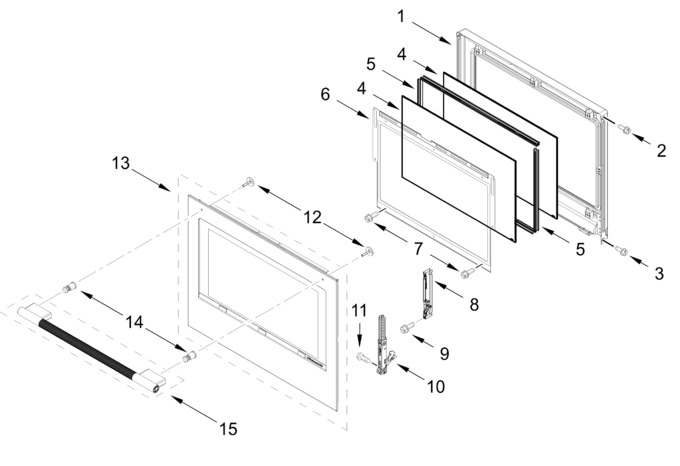

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598186		Liner Assembly   (Replaces: W11302593)				$ 371.00
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 14.77
4	WPW10284902		Glass, Inner   (Replaces: W10618123)				$ 229.81
5	W11736672		Spacer, Air Divider   (Replaces: W11647161)			Immediately	$ 54.06
6	W11598188		Retainer, Air Divider Glass   (Replaces: W11204277)				$ 81.84
7	7101P42660		Screw		Appelez-nous	-
8	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
9	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
10	W11783636		Hinge, Door (left)   (Replaces: W11755835)				$ 132.21
11	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
12	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
13	W11795862		Door Assembly (stainless)   (Replaces: W11680931)				$ 2,041.43
14	W11773159		Stud   (Replaces: W11687274)				$ 29.86
15	W11783638		Handle Assembly (stainless)   (Replaces: W11680268)		Appelez-nous	-
	W11783637		Hinge, Door (right)   (Replaces: W11755836)				$ 122.55
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
