SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts

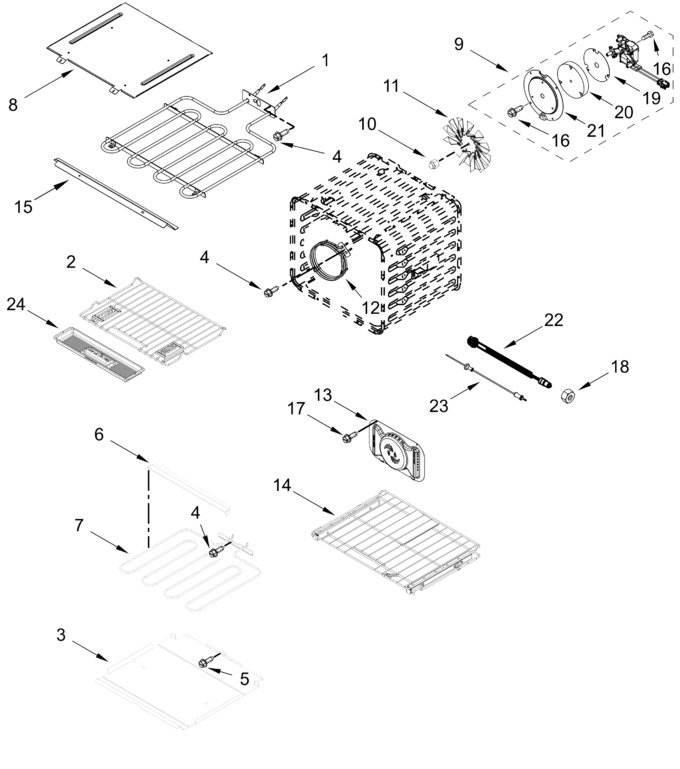

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598122		Element, Broil   (Replaces: W11238159)				$ 124.47
2	W11781377		Rack, Oven Steam   (Replaces: W11740191)				$ 99.62
3	W10318198		Tray, Hidden Bake				$ 186.50
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 45.21
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11598121		Reflector, Broil   (Replaces: W11235537)				$ 59.23
9	W11617227		Convect Motor Assembly   (Replaces: W11398058)			Immediately	$ 159.60
10	W11548755		Nut, Acorn (left Hand Thread)   (Replaces: W11433702)				$ 14.47
11	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 150.12
12	W11678579		Element, Convection   (Replaces: W10546519)			Immediately	$ 115.24
13	W11234761		Baffle, Bow Tie   (Replaces: W10819989)				$ 225.71
14	W11718046		Rack, Sliding   (Replaces: W10554531)			Immediately	$ 173.45
15	W10588737		Shield, Broil Front				$ 100.38
16	W10850807		Screw   (Replaces: W10720084)				$ 7.41
17	WP74003976		Screw   (Replaces: W10906658)				$ 7.19
18	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 6.95
19	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
20	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
21	W11617229		Cover, Convect Plate   (Replaces: W11398057)		Appelez-nous	-
22	W11781376		Jack, Meat Probe   (Replaces: W11734531)		Appelez-nous	-
23	W11765965		Probe, Temperature   (Replaces: W11734537)		Appelez-nous	-
24	W11781378		Reservoir, Steam Rack   (Replaces: W11745725)				$ 178.79

    View Diagram in Separate Window       Print Part List
