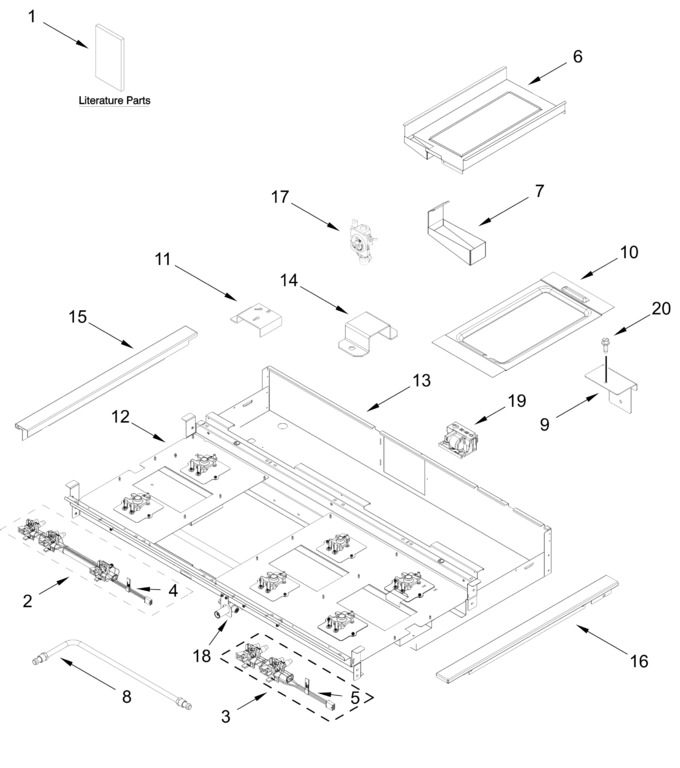

Burner Box And Grill Parts


Cooktop, Burner, And Grill Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11791683		Valve Manifold Assembly   (Replaces: W11651418)		Appelez-nous	-
3	W11785276		Valve Manifold Assembly   (Replaces: W11651413)		Appelez-nous	-
4	W11791684		Switch, Harness   (Replaces: W11596341)		Appelez-nous	-
5	W11785278		Switch, Harness   (Replaces: W11596339)		Appelez-nous	-
6	W11328011		Capture, Grill Grease   (Replaces: W11120957)		Appelez-nous	-
7	W11328012		Tray, Grill Drip   (Replaces: W11174414)		Appelez-nous	-
8	W11338091		Tube, Manifold Supply   (Replaces: W10892476)		Appelez-nous	-
9	W11285353		Bracket, Grill Grease Capture		Appelez-nous	-
10	W11328372		Deflector, Grill Heat   (Replaces: W11120965)		Appelez-nous	-
11	8285790		Bracket, Mounting Orifice				$ 85.85
12	ARI67489F6E1A2CB69AB1596C613567F5E0		Burner Box Assembly (not Serviced)		Appelez-nous	-
13	ARIDBAA9548A1EB15B27ADE369B6B57A1AD		Box, Burner (not Serviced)		Appelez-nous	-
14	W11174418		Bracket, Grill Orifice Holder		Appelez-nous	-
15	W11337059		Main Trim, Left   (Replaces: W11047749)				$ 177.07
16	W11337061		Main Trim, Right   (Replaces: W11047751)				$ 177.37
17	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
18	W11121199		Bracket, Manifold		Appelez-nous	-
19	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
20	7101P43460		Screw		Appelez-nous	-
	ARIFAC3CD3E424B8251FFB54C385EAB94A6		(left Front, Left Rear, And Grill)		Appelez-nous	-
	ARIECC5DF6730B23DD6AC93392F35EB35A4		(right Center Front, Right Center Rear, Right Front, Right Rear)		Appelez-nous	-
	W11038934		Harness, Jumper				$ 186.90
	W11339377		Tube, Manifold Supply   (Replaces: W10892445)		Appelez-nous	-
	W11339379		Tube, Manifold Supply   (Replaces: W10892347)				$ 179.47
	ARI258DA94C9CF5E70E3AC8179901954C3C		(right Center Front, Right Center Rear)		Appelez-nous	-
	ARI97EE49875860764C24B1F1C761487B6B		(right)		Appelez-nous	-
	W10624584		Cord, Power				$ 189.57
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	4450800		Screw, Grounding				$ 13.47
	ARIF4444C9CC15AF901E399B849F8A4059C		(right Front And Right Rear)		Appelez-nous	-
	W11785275		Valve Manifold Assembly   (Replaces: W11651417)		Appelez-nous	-
	W11565474		Wiring Diagram (cooktop)		Appelez-nous	-
	W11508905		Use And Care Guide		Appelez-nous	-
	W11508892		Installation Instructions		Appelez-nous	-
	W11428599		Kit, Lp Conversion   (Replaces: W11422176)			Immediately	$ 47.84
	W11200330		Harness, Cooktop		Appelez-nous	-
	W11202295		Sheet, Tech		Appelez-nous	-
