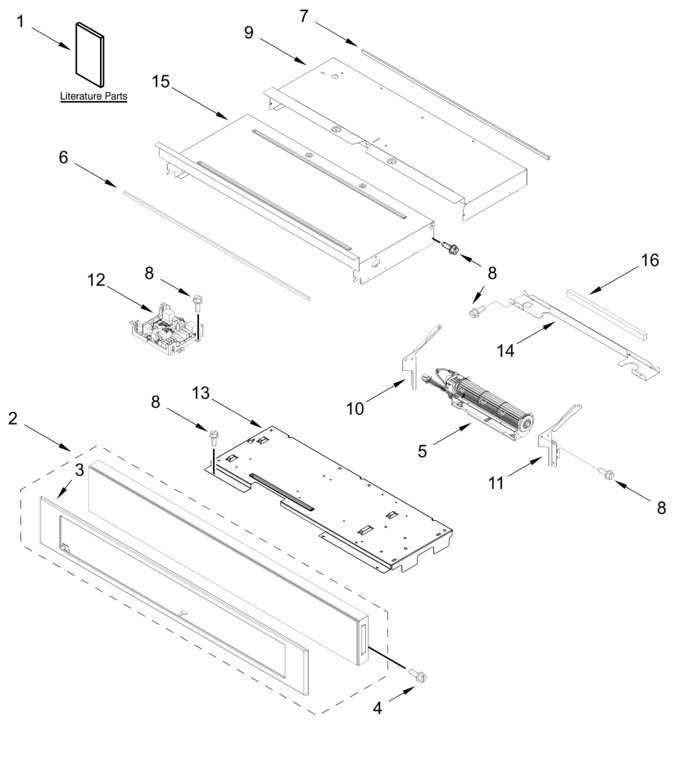

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11795194 | Control Panel Assembly (stainless) (Replaces: W11765381) |
|
- | |||||
| 3 | W11726569 | Skin, Control Panel (stainless) (Replaces: W11689165) |
|
- | |||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11223325 | Cover, 30 In Chassis Top (back) |
|
$ 85.77 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W11448962 | Appliance Manager (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 15 | W11789693 | Cover, 30 In Chassis Top (front) (Replaces: W11767801) |
|
- | |||||
| 16 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11760865 | Owners Manual |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11618058 | Quick Start Guide |
|
- | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11781407 | Harness, Signal (Replaces: W11724173) |
|
- | ||||||
| W11607072 | Bag, Hardware (Replaces: W11547720) |
|
Immediately | $ 15.39 | |||||
| W11382212 | Wiring Diagram |
|
- | ||||||
| W11759107 | Harness, Main (Replaces: W11245665) |
|
$ 242.33 | ||||||
| W10487999 | Clip, Harness |
|
$ 21.12 | ||||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 | |||||
| W10655464 | Bracket, Harness |
|
$ 40.71 | ||||||
| W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 32.95 |
