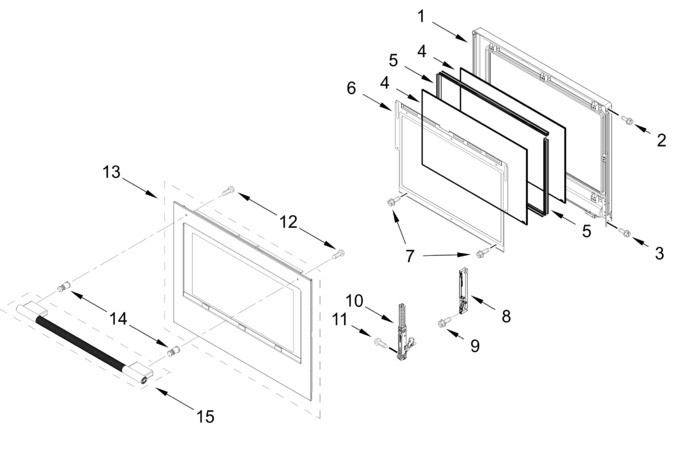

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11699126) |
|
Immediately | $ 303.81 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 72.09 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11752201 | Receiver, Hinge (Replaces: W11100732) |
|
$ 46.56 | |||||
| 9 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 10 | W11781372 | Hinge, Door (left) (Replaces: W11755837) |
|
Immediately | $ 136.84 | ||||
| 11 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 12 | W11749091 | Screw (black) (Replaces: W11707001) |
|
$ 12.34 | |||||
| 13 | W11795859 | Door Assembly (juniper) (Replaces: W11686426) |
|
- | |||||
| 14 | W11773159 | Stud (Replaces: W11687274) |
|
$ 29.86 | |||||
| 15 | W11783627 | Handle Assembly (juniper) (Replaces: W11680262) |
|
- | |||||
| W11781373 | Hinge, Door (right) (Replaces: W11755838) |
|
$ 126.83 |
