SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

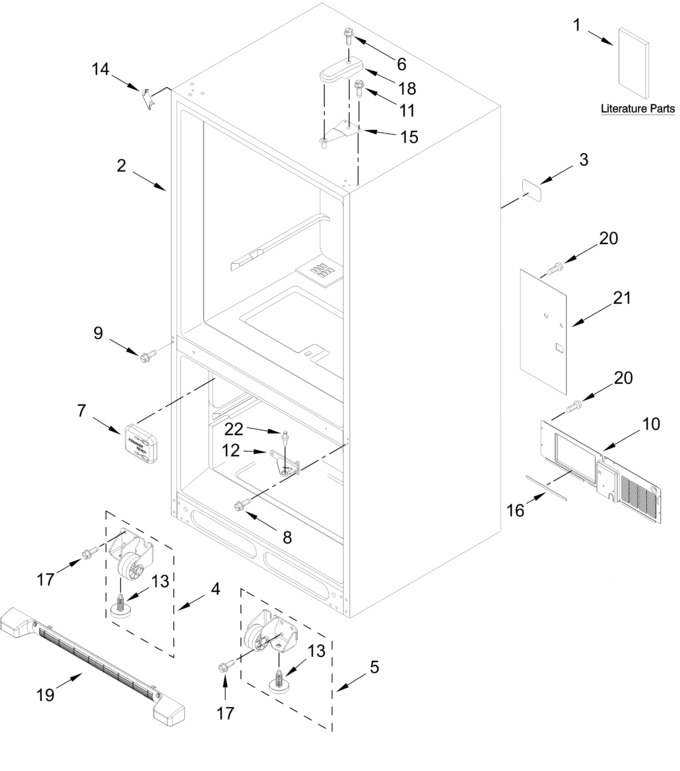

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARI2948F547D7C4C1B6CA0878B04EDFC4EF		Cabinet (not A Servicable Part)		Appelez-nous	-
3	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 7.41
4	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
5	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
6	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
7	W11533743		Cover. Fill Tube   (Replaces: W11328747)		Appelez-nous	-
8	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
9	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 8.43
10	W10210978		Cover, Unit				$ 201.78
11	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
12	W11689473		Hinge, Center   (Replaces: W11610756)				$ 69.79
13	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
14	12587703W		Cover, Corner (white)				$ 22.90
15	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
16	B5759655		Gasket   (Replaces: W11534846)				$ 13.03
17	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
18	67001014		Cover, Hinge (white)   (Replaces: 12477601W)				$ 22.34
19	WPW10534166		Grille, Toe (white, Includes Clips)   (Replaces: W10534166)			Immediately	$ 94.85
20	W11686675		Screw   (Replaces: 12990702)				$ 14.27
21	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 21.36
22	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
	W11479841		Owner's Manual		Appelez-nous	-
	W11312478		Tech Sheet		Appelez-nous	-
	W11644236		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
