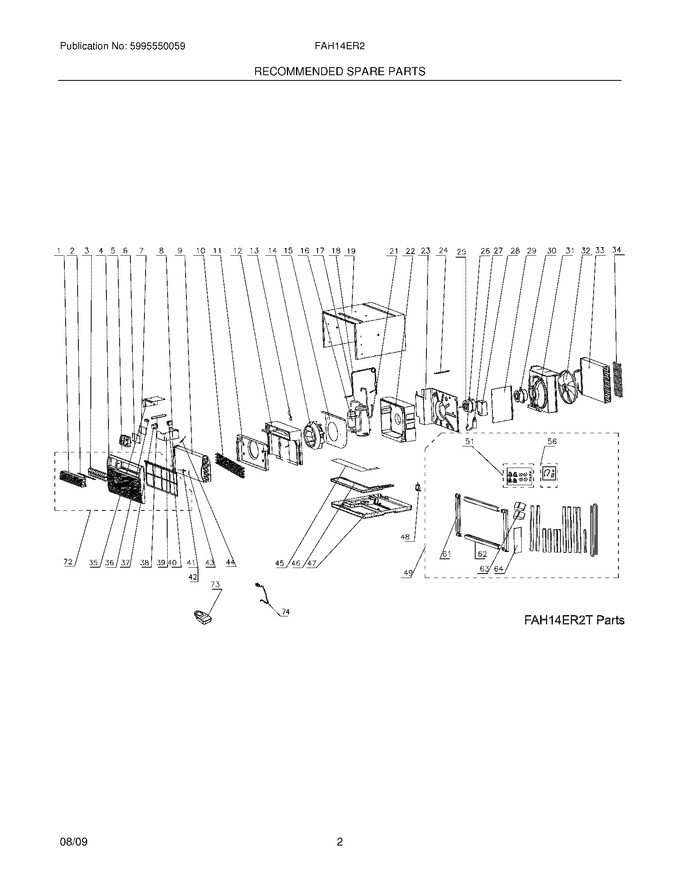

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304459705 | Link,vertical Louver ,with Handle |
|
- | |||||
| 4 | 5304459669 | Panel,front Grille |
|
$ 189.79 | |||||
| 5 | 5304459670 | Control Panel,display Console |
|
- | |||||
| 11 | 5304459744 | Frame,heater Housing |
|
- | |||||
| 12 | 5304459745 | Scroll,blower Housing ,front |
|
- | |||||
| 15 | 5304459748 | Baffle,scroll |
|
- | |||||
| 19 | 5304459752 | Cabinet,wrapper/sleeve |
|
- | |||||
| 22 | 5304459754 | Scroll,blower Housing ,rear |
|
- | |||||
| 23 | 5304459755 | Bulkhead,air System |
|
- | |||||
| 24 | 5304459779 | Support,bulkhead/shroud ,steel |
|
- | |||||
| 26 | 5304459182 | Strap,capacitor Clamp |
|
- | |||||
| 28 | 5304459758 | Housing,capacitor Box |
|
- | |||||
| 29 | 5304459783 | Baffle,plate |
|
- | |||||
| 31 | 5304459785 | Shroud,condenser Fan |
|
- | |||||
| 34 | 5304459788 | Grille,rear |
|
- | |||||
| 35 | 5304459789 | Cover,control Box |
|
- | |||||
| 38 | 5304459780 | Support,control Box ,steel |
|
- | |||||
| 39 | 5304459791 | Control Box |
|
- | |||||
| 42 | 5304459194 | Clip,sensor Support |
|
- | |||||
| 43 | 5304459777 | Deflector,air Filter ,guide |
|
- | |||||
| 46 | 5304459794 | Tray,drip Pan |
|
- | |||||
| 47 | 5304459795 | Base,unit Chassis |
|
- | |||||
| 51 | 5304459817 | Fastener Kit,screws,washers |
|
- | |||||
| 61 | 5304459820 | Trim,cabinet Frame ,side |
|
$ 44.69 | |||||
| 62 | 5304459821 | Trim,cabinet Frame ,top/bottom |
|
$ 45.09 | |||||
| 63 | 5304459822 | Block,spacer Support ,(2) |
|
- | |||||
| 64 | 5304459823 | Spacer,tapered Board ,baffle |
|
- | |||||
| F1 | 5304459668 | Louver,horizontal |
|
- | |||||
| F10 | 5304459743 | Heater,electric |
|
- | |||||
| F13 | 5304459746 | Thermistor,discharge ,high Heat |
|
- | |||||
| F14 | 5304459747 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F16 | 5304459749 | Compressor,with Overload |
|
- | |||||
| F17 | 5304459750 | Tube,suction |
|
- | |||||
| F18 | 5304459751 | Tube,capillary |
|
- | |||||
| F21 | 5304459753 | Tube,discharge |
|
- | |||||
| F25 | 5304459829 | Motor,blower |
|
- | |||||
| F27 | 5304459757 | Capacitor,compressor |
|
- | |||||
| F3 | 5304459706 | Louver,vertical |
|
- | |||||
| F30 | 5304459784 | Motor,fan |
|
- | |||||
| F32 | 5304459786 | Fan Blade,propeller |
|
- | |||||
| F33 | 5304459787 | Condenser |
|
- | |||||
| F36 | 5304459674 | Terminal,electric ,board 2-8 |
|
- | |||||
| F37 | 5304459790 | Capacitor,fan Motor |
|
- | |||||
| F40 | 5304459461 | Relay |
|
- | |||||
| F41 | 5304459792 | Thermistor,temp Sensor ,ambient |
|
$ 64.16 | |||||
| F44 | 5304459793 | Thermistor,evap Sensor ,defrost |
|
$ 69.60 | |||||
| F45 | 5304459778 | Shield,heat ,drip Tray |
|
- | |||||
| F48 | 5304459477 | Valve,drain |
|
- | |||||
| F49 | 5304459826 | Installation Kit,complete |
|
- | |||||
| F56 | 5304459818 | Grounding Kit |
|
- | |||||
| F6 | 5304459741 | Pc Board,display/input |
|
- | |||||
| F7 | 5304459736 | Pc Board,control ,main |
|
$ 364.09 | |||||
| F72 | 5304459825 | Front Assembly,complete Panel |
|
- | |||||
| F73 | 5304459455 | Remote Control,transmitter |
|
$ 132.27 | |||||
| F74 | 5304464146 | Power Cord,electric ,lcdi |
|
- | |||||
| F8 | 5304459671 | Filter,air |
|
$ 40.06 | |||||
| F9 | 5304459742 | Evaporator |
|
- |
