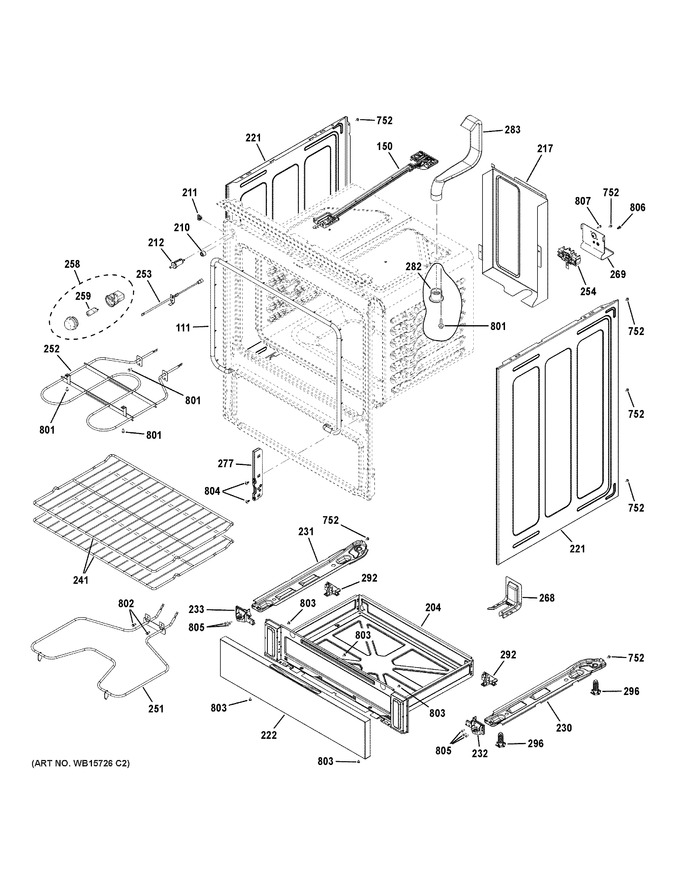

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Control Panel & Cooktop
Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | WB35X47302 | Door Gasket |
|
- | |||||
| 150 | WB10X47306 | Latch Assembly |
|
- | |||||
| 201 | WB01X51326 | Maintop Bracket |
|
- | |||||
| 204 | WB63X47308 | Drawer Body |
|
- | |||||
| 210 | WB02X47106 | Bumper |
|
- | |||||
| 211 | WB01X47066 | Grommet |
|
- | |||||
| 212 | WB24X27550 | Plunger Switch |
|
- | |||||
| 217 | WB34X47312 | Terminal Cover |
|
- | |||||
| 220 | WB34X51426 | Control Cover |
|
- | |||||
| 221 | WB56X47101 | Side Panel-black |
|
- | |||||
| 222 | WB56X47277 | Drawer Panel-stainless |
|
- | |||||
| 230 | WB10X48827 | Rail Base Rh |
|
- | |||||
| 231 | WB10X48826 | Rail Base Lh |
|
- | |||||
| 232 | WB02X47103 | Rh Drawer Support |
|
- | |||||
| 233 | WB02X47107 | Lh Drawer Support |
|
- | |||||
| 241 | WB48X47102 | Rack |
|
- | |||||
| 251 | WB44X47010 | Bake Element |
|
- | |||||
| 252 | WB44X47338 | Broil Element |
|
- | |||||
| 253 | WB17X47506 | Oven Temp Semsor |
|
- | |||||
| 254 | WB18X47088 | Terminal Block |
|
- | |||||
| 258 | WB25X42688 | Halogen Lamp Assembly |
|
- | |||||
| 259 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 268 | WB02X49306 | Anti-tip Bracket Kit |
|
- | |||||
| 268 | WB02X47104 | Anti-tip Bracket |
|
- | |||||
| 269 | WB18X47099 | Terminal Block Bracket |
|
- | |||||
| 277 | WB10X47298 | Hinge Receiver |
|
- | |||||
| 282 | WB38X33648 | Ceramic Catalyst |
|
- | |||||
| 283 | WB38X47111 | Vent Tube |
|
- | |||||
| 292 | WB02X47276 | Rear Drawer Guide |
|
- | |||||
| 296 | WB02T10036 | Leveling Leg |
|
- | |||||
| 752 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 800 | WB01T10012 | Screw 8-18 Ab Flt 375 B |
|
- | |||||
| 801 | WB0X6901 | Screw |
|
- | |||||
| 802 | WB1K5028 | Wb1x536 |
|
- | |||||
| 803 | WB01X48946 | Screw 8-18 Ab Trt-15 3/8 S |
|
- | |||||
| 804 | WB01X47090 | Scr 10-32 Trwt-20 1/2 S |
|
- | |||||
| 805 | WB01X34726 | Screw 8-18 Ab Pnt-20 1/2 S |
|
- | |||||
| 806 | WS02X10087 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 807 | WB01X47355 | Scr 8-32 Ttgx Ihxw 5/8 S |
|
- |
