Diagram # Part Number Description Series Availability Ships Price Add to Cart
101 WB35X21737 Insulation Dr Top Appelez-nous -
102 WB35X31513 Door Side Insulation Appelez-nous -
112 WB63X32569 Oven Door Liner Asm Appelez-nous -
113 WB34X31516 Door Insulation Retainer Appelez-nous -
120 WB34X46746 Liner Support Appelez-nous -
132 WB35X32825 Oven Door Gasket Special Order $ 44.83

140 WB56X45596 Outer Door-stainless Appelez-nous -
144 WB02T10524 Spacer Door Hdl Appelez-nous -
145 WB34T10142 Deflector Oven Door Appelez-nous -
281 WB10X30583 Door Hinge Rt Appelez-nous -
281 WB10X30584 Door Hinge Lt Appelez-nous -
282 WB07X21951 Trim Middle 30 (ss) Appelez-nous -
338 WG02L08666 Window Pack Asm   (Replaces: WB56X27480) In-Stock Immediately $ 638.33

699 WB1K5150 Screw St10-16 X 7/16" Appelez-nous -
875 WG04A00781 Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930) In-Stock Immediately $ 3.57

937 WS01A01018 Screw 10-32 Tr T   (Replaces: WB01T10008) In-Stock Immediately $ 3.57

939 WB01X31573 Mounting Stud Appelez-nous -
1005 WS01A01018 Screw 10-32 Tr T   (Replaces: WB01T10008) In-Stock Immediately $ 3.57


    View Diagram in Separate Window     Print Icon   Print Part List

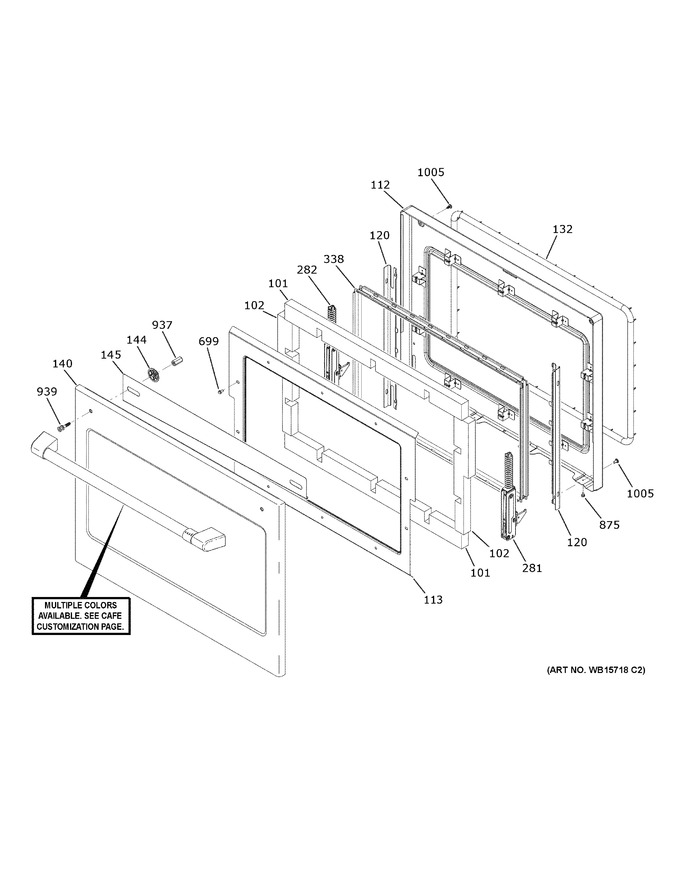

Diagram for CTC912P2N3S1
