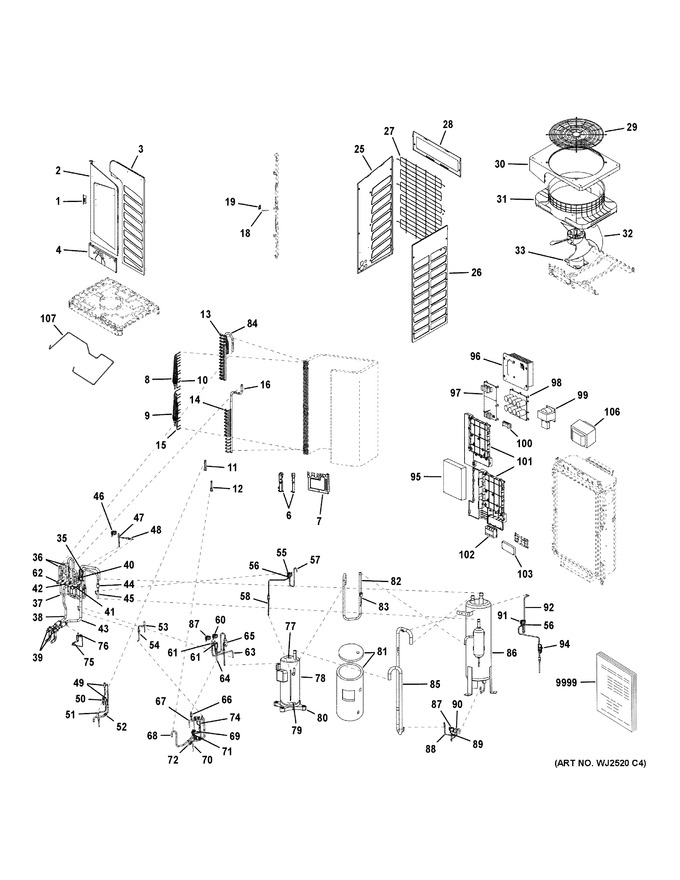

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP01X26749 | Handle |
|
- | |||||
| 2 | WP71X26741 | Service Panel |
|
- | |||||
| 3 | WP71X26740 | Front Panel |
|
- | |||||
| 4 | WP74X28218 | Lower Front Panel |
|
- | |||||
| 6 | WP65X26089 | Support Plate |
|
- | |||||
| 7 | WP65X26015 | Valve Seat |
|
- | |||||
| 8 | WP53X26757 | Upper Liquid Header |
|
- | |||||
| 9 | WP53X26760 | Lower Liquid Header |
|
- | |||||
| 10 | WP26X26027 | Tdef Sensor |
|
- | |||||
| 11 | WP53X26981 | Supercooled Tube1 |
|
- | |||||
| 12 | WP53X26982 | Supercooled Tube 2 |
|
- | |||||
| 13 | WP53X27060 | Upper Gas Header |
|
- | |||||
| 14 | WP53X27061 | Lower Gas Header |
|
- | |||||
| 15 | WP26X26754 | Tdef2 Sensor |
|
- | |||||
| 16 | WP26X26755 | Toci2 Sensor |
|
- | |||||
| 18 | WP26X26756 | Tao Sensor |
|
- | |||||
| 19 | WP65X26751 | Sensor Clip |
|
- | |||||
| 25 | WP71X26738 | Left Side Panel |
|
- | |||||
| 26 | WP71X26739 | Right Side Panel |
|
- | |||||
| 27 | WP71X26016 | Grille |
|
- | |||||
| 28 | WP71X26737 | Back Guard |
|
- | |||||
| 29 | WP71X26960 | Top Grille |
|
- | |||||
| 30 | WP71X28222 | Top Cover |
|
- | |||||
| 31 | WP76X26022 | Fan Shroud |
|
- | |||||
| 32 | WP73X26024 | Fan Blade |
|
- | |||||
| 33 | WP94X28235 | Outdoor Fan Motor |
|
- | |||||
| 35 | WJ26X22645 | High Pressure Sensor |
|
- | |||||
| 36 | WP53X27057 | Reversing Valve Tube C |
|
- | |||||
| 37 | WP53X27069 | Reversing Valve Tube D |
|
- | |||||
| 38 | WP53X27071 | Reversing Valve Tube E |
|
- | |||||
| 39 | WP53X34016 | Stop Valve |
|
- | |||||
| 40 | WJ26X22652 | Low Pressure Sensor |
|
- | |||||
| 41 | WP26X27053 | Reversing Valve |
|
- | |||||
| 42 | WP53X27353 | Reversing Valve |
|
- | |||||
| 43 | WP53X27059 | Reversing Valve Tube S |
|
- | |||||
| 44 | WP26X26977 | Check Valve |
|
- | |||||
| 45 | WP53X27010 | Check Valve Connection Tube |
|
- | |||||
| 46 | WP26X26967 | Sv1 Solenoid Coil |
|
- | |||||
| 47 | WP26X26956 | Sv1 Solenoid Valve Body |
|
- | |||||
| 48 | WP53X27066 | Sv1 Connection Tube |
|
- | |||||
| 49 | WJ26X22560 | Electronic Expansion Valve |
|
- | |||||
| 50 | WP53X27063 | Eev Connection Tube |
|
- | |||||
| 51 | WP53X27062 | Lower Liquid Header Connection Tube |
|
- | |||||
| 52 | WP53X27070 | Upper Liquid Header Connection Tube |
|
- | |||||
| 53 | WP26X26976 | Unloading Valve |
|
- | |||||
| 54 | WP53X27065 | Unloading Valve Connection Tube |
|
- | |||||
| 55 | WP26X26969 | Sv9 Solenoid Coil |
|
- | |||||
| 56 | WP26X26957 | Solenoid Valve Body |
|
- | |||||
| 57 | WP53X26994 | Sv9 To Compressor Connection Tube |
|
- | |||||
| 58 | WP53X26995 | Sv9 To Reversing Valve Connection Tube |
|
- | |||||
| 60 | WP26X26968 | Sv7 Solenoid Coil |
|
- | |||||
| 61 | WP26X26958 | Solenoid Valve Body |
|
- | |||||
| 62 | WP26X27054 | Reversing Valve |
|
- | |||||
| 63 | WP53X27067 | Sv3 To Reversing Valve Connection Tube |
|
- | |||||
| 64 | WP53X27064 | Sv3 To Heat Exchanger Connection Tube |
|
- | |||||
| 65 | WP53X27068 | Sv7 Connection Tube |
|
- | |||||
| 66 | WP53X27056 | Heat Exchanger To Sv3 Connection Tube |
|
- | |||||
| 67 | WP26X26972 | Tsco Sensor |
|
- | |||||
| 68 | WP53X27058 | Heat Exchanger To Supercooled Tube 2 |
|
- | |||||
| 69 | WP53X34015 | Stop Valve |
|
- | |||||
| 70 | WP26X26973 | Tsci Sensor |
|
- | |||||
| 71 | WJ53X22639 | Electronic Expansion Valve |
|
- | |||||
| 72 | WP53X27072 | Stop Valve Connection Tube |
|
- | |||||
| 74 | WP87X34014 | Heat Exchanger Assembly |
|
- | |||||
| 75 | WP53X27363 | Gas Injection Tube |
|
- | |||||
| 76 | WJ27X22626 | Charging Port |
|
$ 15.06 | |||||
| 77 | WP26X26971 | Td Sensor |
|
- | |||||
| 78 | WP98X28243 | Compressor |
|
- | |||||
| 79 | WP26X26974 | Toil Sensor |
|
- | |||||
| 80 | WP27X26752 | Compressor Heater |
|
- | |||||
| 81 | WP43X26961 | Compressor Insulation |
|
- | |||||
| 82 | WP53X26051 | Discharge Tube |
|
- | |||||
| 83 | WP26X26962 | High Pressure Switch |
|
- | |||||
| 84 | WP26X26753 | Toci1 Sensor |
|
- | |||||
| 85 | WP53X26049 | Suction Tube |
|
- | |||||
| 86 | WP53X26039 | Accumulator |
|
- | |||||
| 87 | WP26X26966 | Solenoid Coil |
|
- | |||||
| 88 | WP53X26998 | Sv14 To Suction Connection Tube |
|
- | |||||
| 89 | WP26X26993 | Sv14 Solenoid Valve Body |
|
- | |||||
| 90 | WP53X26996 | Sv14 To Accumulator Tube |
|
- | |||||
| 91 | WP26X26953 | Sv181 Solenoid Coil |
|
- | |||||
| 92 | WP53X27004 | Sv181 To Suction Connection Tube |
|
- | |||||
| 94 | WP53X27003 | Sv181 To Accumulator Connection Tube |
|
- | |||||
| 95 | WP26X34013 | Power Control Board |
|
- | |||||
| 96 | WP26X28254 | Invert Drive With Heat Sink |
|
- | |||||
| 97 | WP26X28237 | Power Filter Board |
|
- | |||||
| 98 | WP26X28238 | Capacitor Board |
|
- | |||||
| 99 | WP26X26032 | Reactor |
|
- | |||||
| 100 | WP26X26734 | Communication Terminal Block |
|
- | |||||
| 101 | WP76X26750 | Plastic Base |
|
- | |||||
| 102 | WP26X26033 | Power Supply Terminal Block |
|
- | |||||
| 103 | WP26X33434 | Pcb Io Expansion Board |
|
- | |||||
| 106 | WP26X28233 | Power Transformer |
|
- | |||||
| 107 | WP27X28251 | Base Pan Heater |
|
- | |||||
| 9999 | 31-5000573 | Pm Install Instructions |
|
- | |||||
| 9999 | 49-5000878 | Printed And Onlineowners And Install |
|
- |
