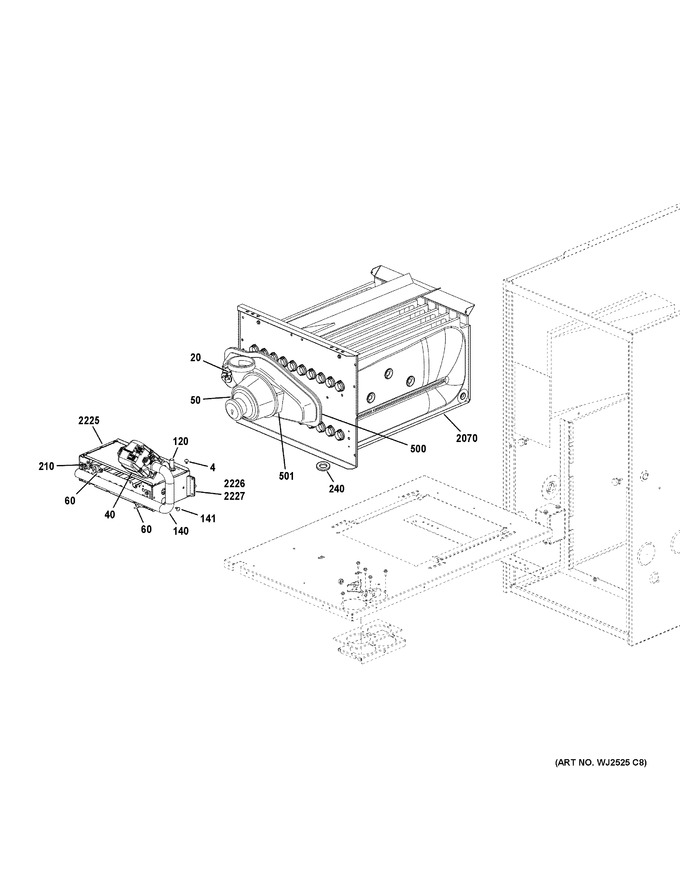

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 69W94 | 101910-05 Orifice-lp #61-(cto) |
|
- | |||||
| 20 | 80W53 | 103247-05 Switch-pressure .68 |
|
- | |||||
| 40 | 73W17 | 102837-01 Valve-gas (nat) |
|
Immediately | $ 234.68 | ||||
| 50 | 74W55 | Blower-comb Air S/a-(cto) |
|
- | |||||
| 60 | 71W49 | 102907-01 Roll Out Switch (210f) |
|
Immediately | $ 46.34 | ||||
| 120 | 70W16 | Lb-112237b Ignitor Assy-(cto) |
|
Immediately | $ 185.00 | ||||
| 140 | 74W71 | Manifold-gas-(cto) |
|
- | |||||
| 141 | 69W27 | Orifice-nat-1/16-(cto) |
|
- | |||||
| 210 | 69W43 | Lb-74940b Flame Sensor Kit (102431-02) |
|
Immediately | $ 99.99 | ||||
| 240 | 69W51 | Gasket-orifice Plate-(cto) |
|
- | |||||
| 500 | 69W45 | Gasket-coll Box-(cto) |
|
- | |||||
| 501 | 68W90 | Box-collector-(cto) |
|
- | |||||
| 2070 | 14D50 | Assy Heat Exch (610280-02)-(cto) |
|
- | |||||
| 2225 | 69W88 | Burner Assy (070)-(cto) |
|
- | |||||
| 2226 | 69W93 | Bracket-burner Mtg-l-(cto) |
|
- | |||||
| 2227 | 13U06 | 104595-01 Burner Brkt Mtg-rt-(cto) |
|
- |
