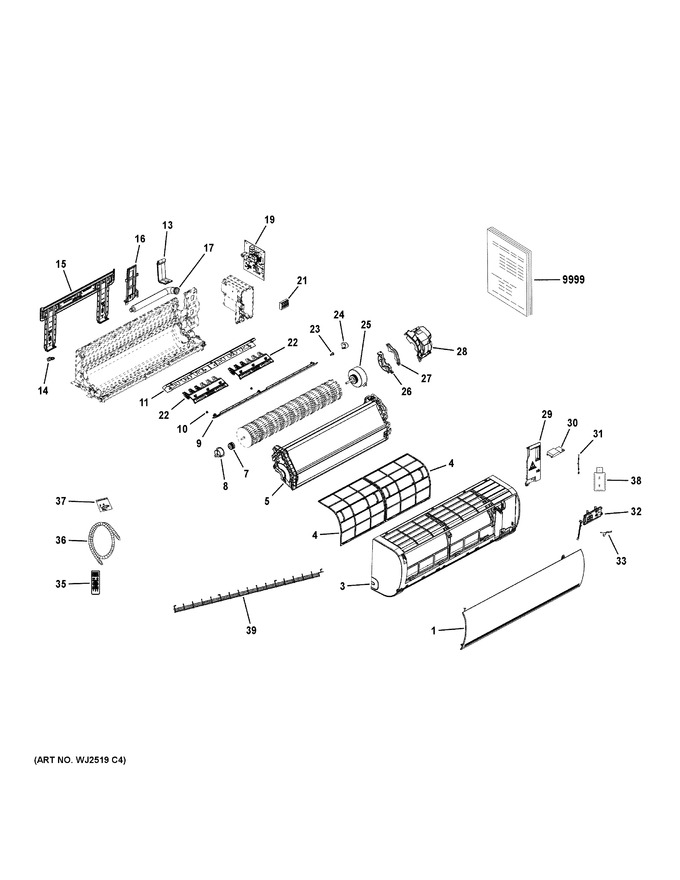

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ76X34112 | Top Cover |
|
- | |||||
| 3 | WJ76X34114 | Casing Assembly |
|
- | |||||
| 4 | WJ85X34167 | Filter |
|
- | |||||
| 5 | WJ87X34145 | Evaporator |
|
- | |||||
| 7 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 8 | WJ73X28013 | Bearing Cover |
|
- | |||||
| 9 | WJ71X34118 | Air Louver |
|
- | |||||
| 10 | WJ01X24240 | Louver Bushing |
|
- | |||||
| 11 | WJ65X34124 | Louver Strip Bracket |
|
- | |||||
| 13 | WJ65X35832 | Kick-stand |
|
- | |||||
| 14 | WJ01X26401 | Drain Plug |
|
- | |||||
| 15 | WJ65X27875 | Mounting Bracket |
|
- | |||||
| 16 | WJ76X34170 | Pipe Chanel Cover |
|
- | |||||
| 17 | WJ53X27918 | Drain Pipe |
|
- | |||||
| 19 | WJ26X35843 | Indoor Main Pcb |
|
- | |||||
| 21 | WJ26X23043 | Terminal Block |
|
- | |||||
| 22 | WJ71X34122 | Louver Vent |
|
- | |||||
| 23 | WJ01X24235 | Shaft Jacket |
|
- | |||||
| 24 | WJ94X34129 | Louver Motor |
|
- | |||||
| 25 | WJ94X34171 | Indoor Fan Motor |
|
- | |||||
| 26 | WJ65X26400 | Motor Bracket Bottom |
|
- | |||||
| 27 | WJ65X25953 | Motor Bracket Top |
|
- | |||||
| 28 | WJ76X36713 | Motor Cover |
|
- | |||||
| 29 | WJ76X34131 | Electrical Box Cover |
|
- | |||||
| 30 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 31 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 32 | WJ26X34193 | Display Board Assy |
|
- | |||||
| 33 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 35 | WJ26X34134 | Remote |
|
- | |||||
| 36 | WJ71X34093 | Drain Hose |
|
- | |||||
| 37 | WJ01X34135 | Screw Kit |
|
- | |||||
| 38 | WJ26X32653 | Wi-fi Module |
|
- | |||||
| 39 | WJ71X34176 | Protective Cover |
|
- | |||||
| 9999 | 49-5000885 | Printed And Onlineowners Manual |
|
- | |||||
| 9999 | 31-5000884 | Printed And Onlineinstall Instructions |
|
- |
