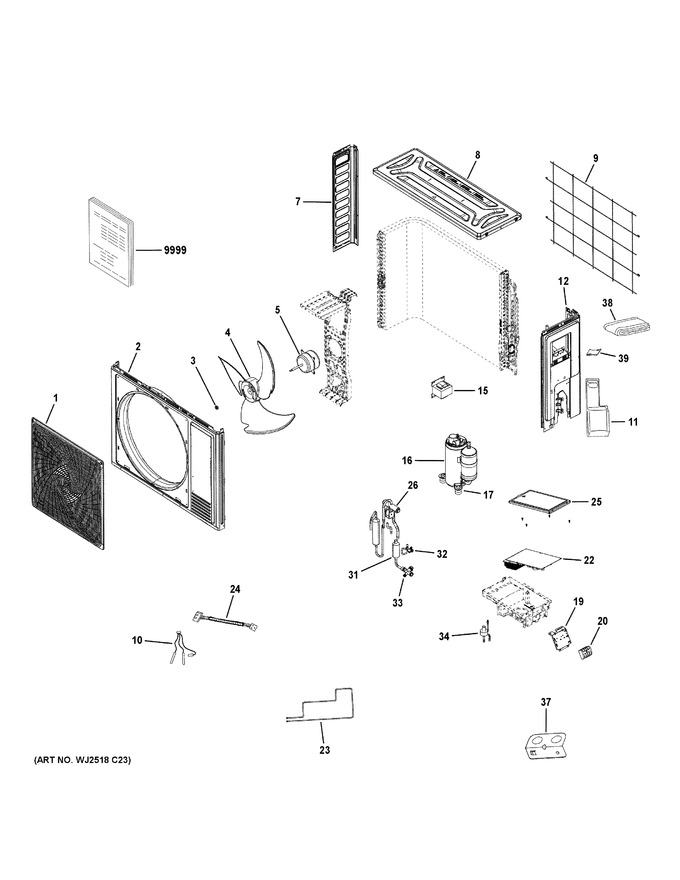

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X34153 | Grille |
|
- | |||||
| 2 | WJ76X34154 | Front Panel |
|
- | |||||
| 3 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 4 | WJ73X34155 | Fan Blade |
|
- | |||||
| 5 | WJ94X34156 | Outdoor Motor |
|
- | |||||
| 7 | WJ71X34238 | Left Panel |
|
- | |||||
| 8 | WJ71X34239 | Top Panel |
|
- | |||||
| 9 | WJ71X34234 | Rear Grille |
|
- | |||||
| 10 | WJ26X34254 | Sensor Assy. Comp/amb/def |
|
- | |||||
| 11 | WJ76X34158 | Service Valve Cover |
|
- | |||||
| 12 | WJ71X34243 | Side/rear Panel Assy |
|
- | |||||
| 15 | WJ27X23006 | Reactor |
|
- | |||||
| 16 | WJ98X34160 | Compressor |
|
- | |||||
| 17 | WJ01X22974 | Flange Nut |
|
- | |||||
| 19 | WJ65X34161 | Terminal Block Mounting Bracket |
|
- | |||||
| 20 | WJ27X26435 | Terminal Block |
|
- | |||||
| 22 | WJ26X35365 | Outdoor Pcb Assembly |
|
- | |||||
| 23 | WJ27X34253 | Heater |
|
- | |||||
| 24 | WJ35X34144 | Wiring Harness |
|
- | |||||
| 25 | WJ76X34235 | Electrical Box Cover |
|
- | |||||
| 26 | WJ53X22987 | 4-way Valve |
|
- | |||||
| 31 | WJ53X34162 | Supply Tubing To 3-way Valve |
|
- | |||||
| 32 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 33 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 34 | WJ53X23148 | Electronic Expansion Valve |
|
$ 126.89 | |||||
| 37 | WJ65X34148 | Electrical Conduit Bracket |
|
- | |||||
| 38 | WJ43X34110 | Compressor Insulation Blanket |
|
- | |||||
| 39 | WJ43X34108 | Mastic |
|
- | |||||
| 9999 | 31-5000884 | Printed And Onlineinstall Instructions |
|
- | |||||
| 9999 | 49-5000885 | Printed And Onlineowners Manual |
|
- |
