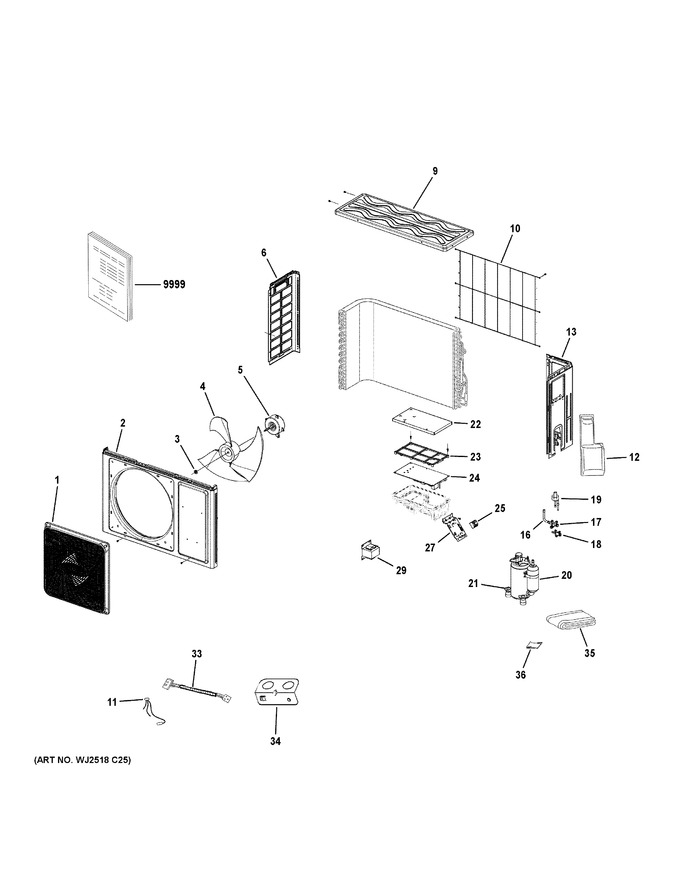

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X34094 | Grille |
|
- | |||||
| 2 | WJ76X34095 | Front Panel |
|
- | |||||
| 3 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 4 | WJ73X34096 | Fan Blade |
|
- | |||||
| 5 | WJ94X34097 | Outdoor Motor |
|
- | |||||
| 6 | WJ71X34241 | Left Panel |
|
- | |||||
| 9 | WJ71X34239 | Top Panel |
|
- | |||||
| 10 | WJ71X34098 | Rear Grille |
|
- | |||||
| 11 | WJ26X34099 | Sensor Assy. Comp/amb/def |
|
- | |||||
| 12 | WJ76X34100 | Service Valve Cover |
|
- | |||||
| 13 | WJ71X34242 | Side/rear Panel Assy |
|
- | |||||
| 16 | WJ53X34237 | Valve Tube Assembly |
|
- | |||||
| 17 | WJ53X24974 | Vapor Service Valve |
|
- | |||||
| 18 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 19 | WJ53X34103 | Electronic Expansion Valve |
|
- | |||||
| 20 | WJ98X34104 | Compressor |
|
- | |||||
| 21 | WJ01X22974 | Flange Nut |
|
- | |||||
| 22 | WJ76X35364 | Control Box Cover |
|
- | |||||
| 23 | WJ65X35361 | Pcb Board Bracket |
|
- | |||||
| 24 | WJ26X35861 | Outdoor Pcb Assembly |
|
- | |||||
| 25 | WJ27X26435 | Terminal Block |
|
- | |||||
| 27 | WJ65X34163 | Terminal Block Mounting Bracket |
|
- | |||||
| 29 | WJ27X34105 | Reactor |
|
- | |||||
| 33 | WJ35X34106 | Wiring Harness |
|
- | |||||
| 34 | WJ65X34148 | Electrical Conduit Bracket |
|
- | |||||
| 35 | WJ43X34110 | Compressor Insulation Blanket |
|
- | |||||
| 36 | WJ43X34108 | Mastic |
|
- | |||||
| 9999 | 31-5000884 | Printed And Onlineinstall Instructions |
|
- | |||||
| 9999 | 49-5000885 | Printed And Onlineowners Manual |
|
- |
