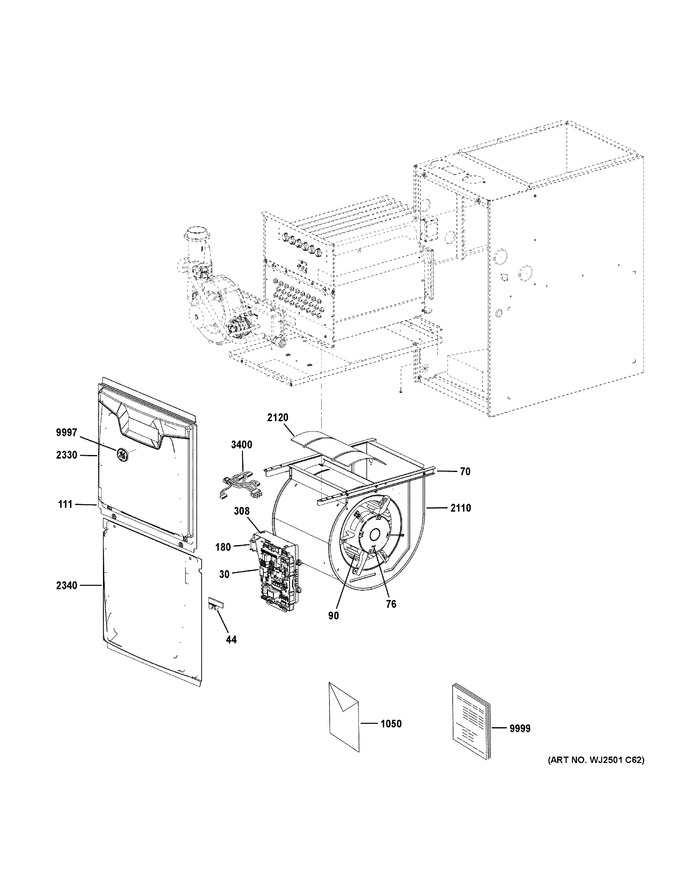

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | 23C48 | 607436-05 Ignition Control Kit |
|
- | |||||
| 30 | 27P19 | Ignition Control |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 76 | 24K30 | 624623-16 Blwr Motor (prog) 1/2hp Ct |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 111 | 74W13 | Pnl Filler Door Trim-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 308 | 28W59 | Box-control-(cto) |
|
- | |||||
| 1050 | 538299-01 | Sticker-wiring Diagram-(cto) |
|
- | |||||
| 2110 | 24K42 | Blower Hsg 10 X 8 Uh 625023-01 (cto) |
|
- | |||||
| 2120 | 68W48 | Blwr Hsg Cutoff Plate-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 3400 | 22U03 | Harness-motor X13 Constant |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
