View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

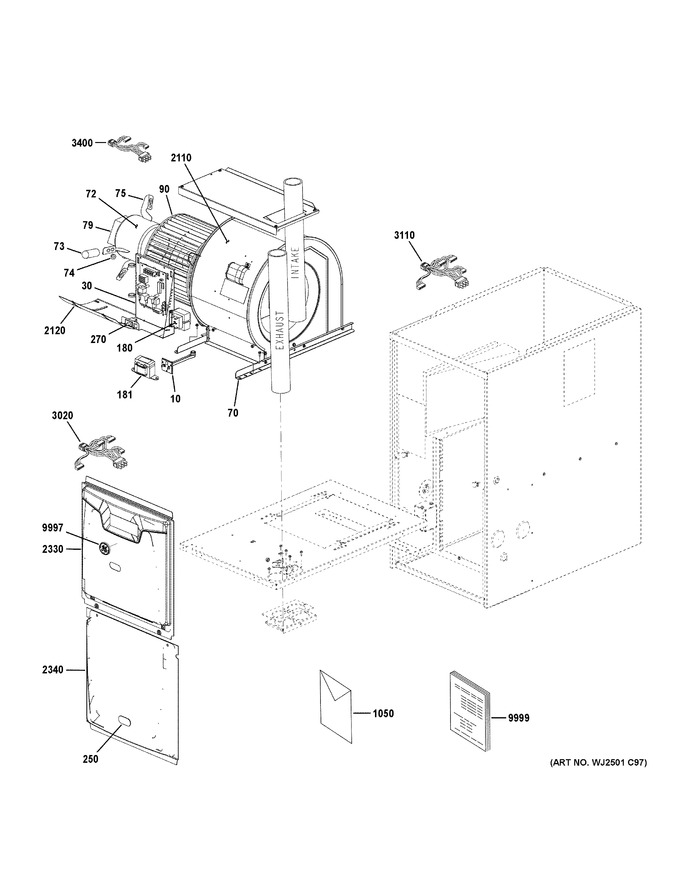

Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 69W37 | 102135-04 Control-limit Aux (165f) |
|
- | |||||
| 30 | 27P19 | Ignition Control |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 23V83 | 624623-13 Motor Repl 1hp 115v Ct |
|
- | |||||
| 73 | 42W05 | Sleeve-(cto) |
|
- | |||||
| 74 | 43H81 | Grommet-(cto) |
|
- | |||||
| 75 | 49L97 | Arm-motor Mtg-(cto) |
|
- | |||||
| 79 | 10B05 | 607363-12 Module Only (programmed) |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 250 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 1050 | 537452-01 | Wiring Diagram -a80df1e/80g1df-e-(cto) |
|
- | |||||
| 2110 | 70W39 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 81L92 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 2340 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 3020 | 81W44 | 607349-03 Harness-wire-(cto) |
|
- | |||||
| 3110 | 12M66 | Harness-wiring Unit-(cto) |
|
- | |||||
| 3400 | 22U03 | Harness-motor X13 Constant |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
