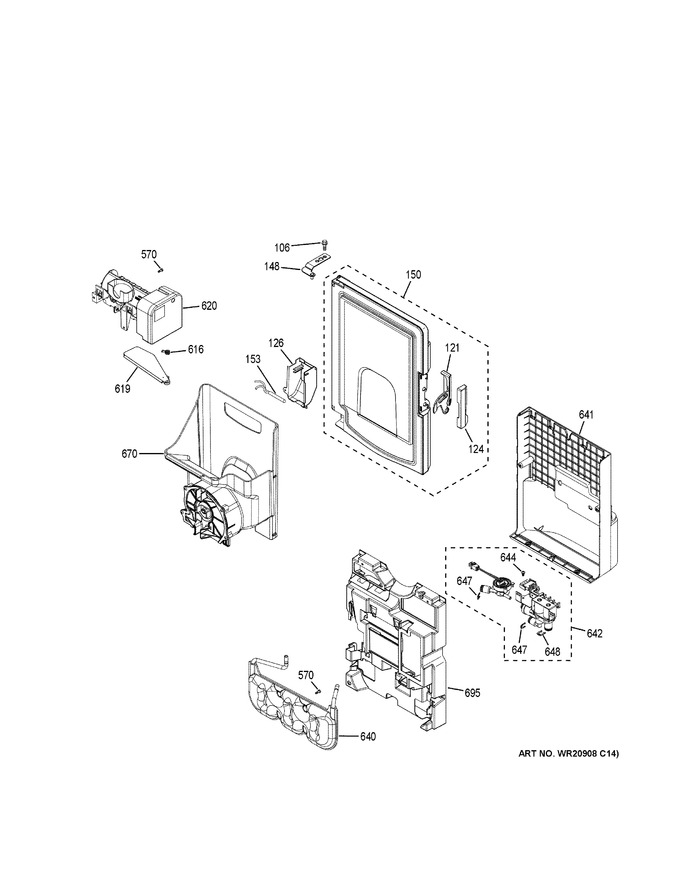

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 121 | WR11X10031 | Latch Icebox Door |
|
- | |||||
| 124 | WR02X23032 | Cover Latch |
|
- | |||||
| 126 | WR17X13067 | Cover Am Im Harness |
|
- | |||||
| 148 | WR13X10972 | Hinge Top Door Icebox |
|
- | |||||
| 150 | WR78X25914 | Door Icebox Foam Asm |
|
- | |||||
| 153 | WR55X11142 | Sensor Temperature |
|
- | |||||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s |
|
- | |||||
| 616 | WR29X10112 | Spring Feeler Arm |
|
- | |||||
| 619 | WR29X10110 | Arm Feeler Im |
|
- | |||||
| 620 | WG03F07552 | Ice Maker Asm-for Door (Replaces: WR30X10160) |
|
Immediately | $ 184.41 | ||||
| 640 | WR17X24972 | Tank Cold Water Asm |
|
- | |||||
| 641 | WR02X25186 | Cover Valve And Tank |
|
- | |||||
| 642 | WR57X24979 | Valve Dual Water W Fm |
|
- | |||||
| 644 | WR01X11019 | Scr M4x1.59 Mch P 10mm S |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 648 | WR01X11040 | Quick Clip Conn 5/16 |
|
- | |||||
| 670 | WR30X10174 | Ice Bucket & Crusher |
|
- | |||||
| 695 | WR13X25912 | Housing Tray Valve Tank |
|
- |
