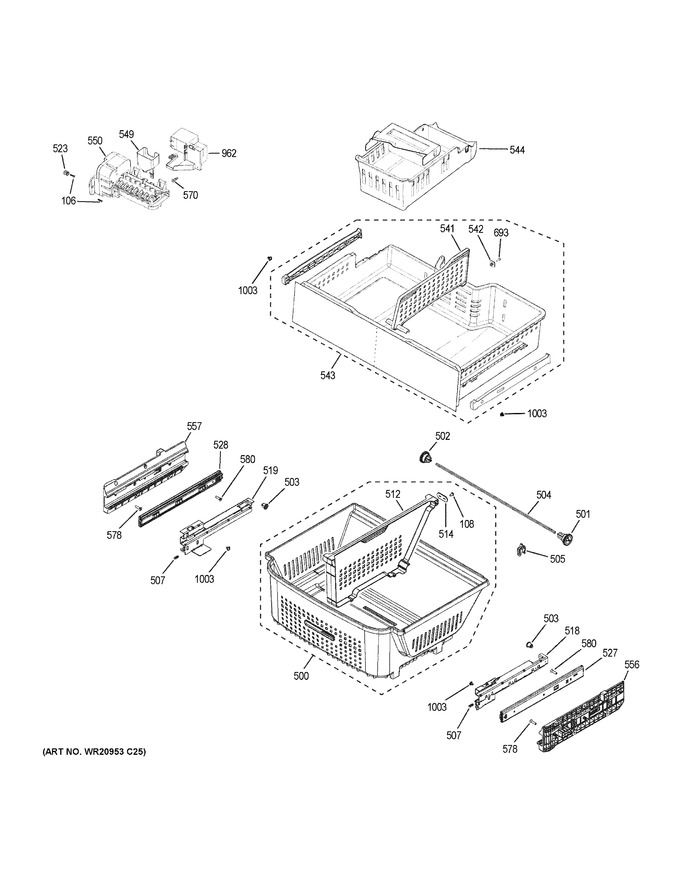

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
108	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
500	WR21X10254		Basket Bottom Asm		Appelez-nous	-
501	WG03L05151		Gear Lwr Drw Rh   (Replaces: WR02X13629)				$ 12.71
502	WG03L05152		Gear Lwr Drw Lh   (Replaces: WR02X13630)				$ 19.06
503	WG03F03819		Connnector Gear Pinion   (Replaces: WR02X13631)				$ 6.35
504	WR02X13765		Crossbar Pinion		Appelez-nous	-
505	WR01X11023		Pin Cross Bar		Appelez-nous	-
507	WR01X11036		Screw Set Door Fz		Appelez-nous	-
512	WR02X13764		Divider Basket Bottom		Appelez-nous	-
514	WR02X13674		Support Slide Fz		Appelez-nous	-
518	WR17X13194		Bracket Slide Fz Rh		Appelez-nous	-
519	WR17X13195		Bracket Slide Fz Lh		Appelez-nous	-
523	WR02X23082		Grommet		Appelez-nous	-
527	WR72X10452		Slide Lower Fz Rh		Appelez-nous	-
528	WR72X10454		Slide Lower Fz Lh		Appelez-nous	-
541	WR02X23046		Divider Basket Upper		Appelez-nous	-
542	WR02X13706		Stopper Divider Fz Upper		Appelez-nous	-
543	WR32X26290		Basket Upper Asm		Appelez-nous	-
544	WR30X23327		Bucket Ice Asm		Appelez-nous	-
549	WR30X25485		Cup Fill Fz Im		Appelez-nous	-
550	WR30X25766		Icemaker Asm		Appelez-nous	-
556	WR72X10451		Slide Holder Fz Rh		Appelez-nous	-
557	WR72X10453		Slide Holder Fz Lh		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
580	WR01X11013		Scr 10-18 Flt20 3/4 S		Appelez-nous	-
693	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
962	WR17X23054		Housing Wire Im Fz		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
