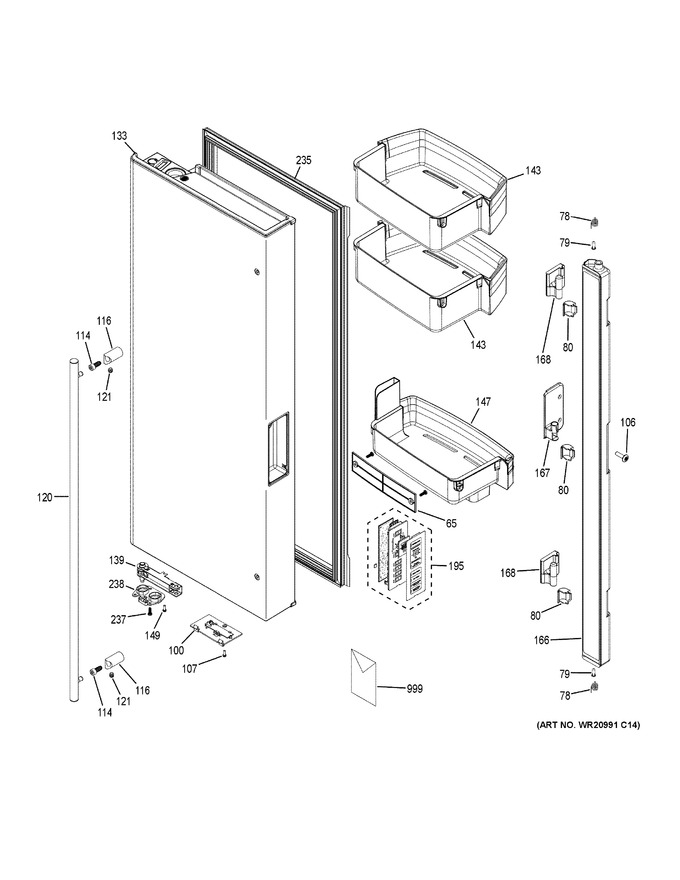

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
65	WR02X13730		Cover Harness		Appelez-nous	-
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
100	WR55X23636		Cover Led Fz Asm		Appelez-nous	-
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
107	WR01X11029		Scr 8-18 Flp 1/2 S		Appelez-nous	-
114	WR01X23378		Fastener Door Handle		Appelez-nous	-
116	WR02X23377		Stand Off		Appelez-nous	-
120	WR12X23383		Handle Euro Ff Asm		Appelez-nous	-
121	WR01X23379		Set Screw		Appelez-nous	-
133	WR78X23370		Door Foam Asm Ff Lh Nd		Appelez-nous	-
139	WR11X23034		Closure Door Asm Lh		Appelez-nous	-
143	WR71X11067		Bin Gal Lh Ff Asm		Appelez-nous	-
147	WR71X11068		Bin Cond Lh Ff Asm		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
166	WR17X13240		Dorian Gray Articulating Mullion		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
195	WR55X22124		Control Lh Door Side Asm		Appelez-nous	-
235	WG03L09792		Gasket Ff Dgy   (Replaces: WR14X10377)				$ 145.45
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
238	WR02X13634		Stop Door Rh/lh Asm		Appelez-nous	-
999	31-51932		Pm Mini Manual Service		Appelez-nous	-
999	31-49112		Pm Inst Instruction Mg		Appelez-nous	-
999	31-49050		Pm Inst Instruct Mg Web		Appelez-nous	-
999	49-60717		Pm Owners Guide Monogram		Appelez-nous	-
999	49-60718		Pm Owners Guide Mg Web		Appelez-nous	-
