View Diagram in Separate Window
Print Part List

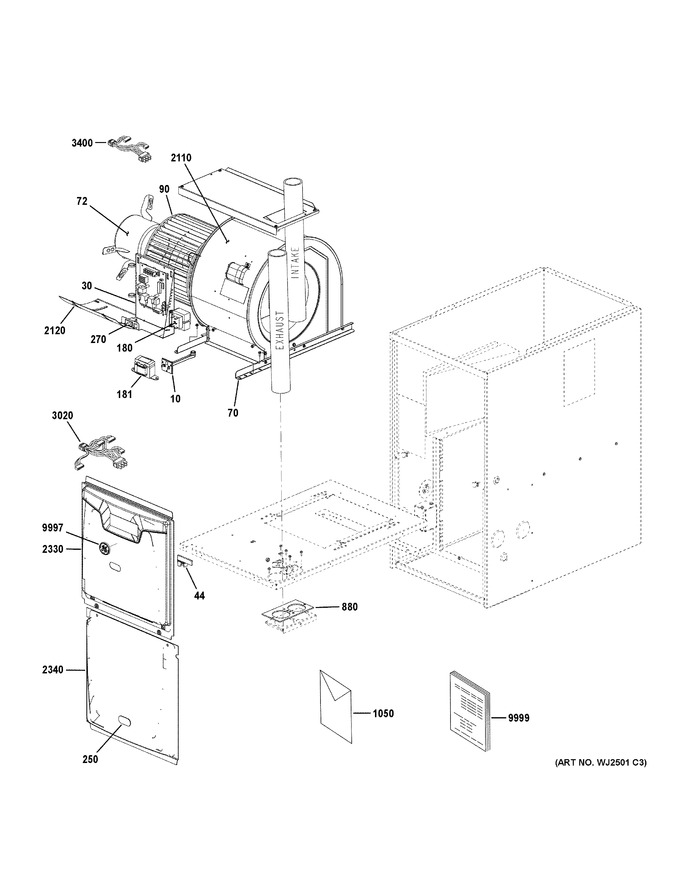

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 73W20 | 102857-07 Control-limit (175f) Main |
|
- | |||||
| 30 | 27P19 | Ignition Control |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 23V79 | Motor Repl 3/4hp 115v Ct |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 250 | 27M47 | Sightglass Repl Kit-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 880 | 72W53 | Seal-exhaust/vent (top Cap)-(cto) |
|
- | |||||
| 1050 | 537923-01 | Wire Diagram Sticker - 96g1dfe-(cto) |
|
- | |||||
| 2110 | 70W43 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 68W49 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 2340 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 3020 | 94W31 | Harness-wiring-(cto) |
|
- | |||||
| 3400 | 22U03 | Harness-motor X13 Constant |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
