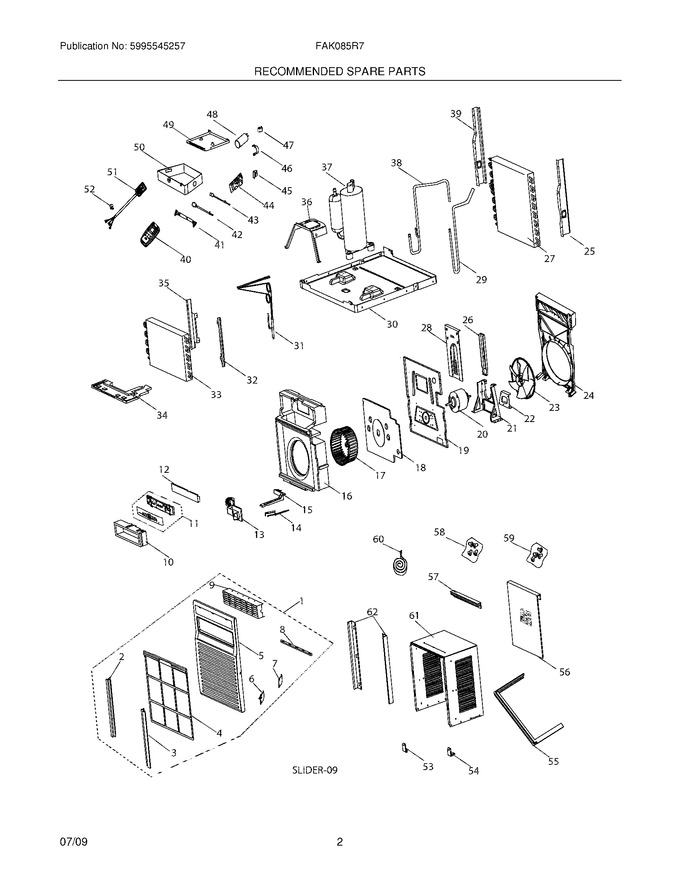

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304471325 | Bracket,filter Guide ,right |
|
- | |||||
| 3 | 5304471326 | Bracket,filter Guide ,left |
|
- | |||||
| 5 | 5304471348 | Panel,front Grille |
|
$ 68.36 | |||||
| 10 | 5304471353 | Vent,scroll Adapter ,top/front |
|
- | |||||
| 12 | 5304471355 | Cover,control Panel |
|
- | |||||
| 13 | 5304471356 | Door,air Vent Cover |
|
- | |||||
| 14 | 5304471357 | Lever,vent Opener |
|
- | |||||
| 15 | 5304471358 | Bracket,vent Door ,support |
|
- | |||||
| 16 | 5304471359 | Scroll,blower Housing |
|
- | |||||
| 18 | 5304471361 | Panel,scroll ,rear |
|
- | |||||
| 19 | 5304471362 | Bulkhead,partition ,front |
|
- | |||||
| 21 | 5304471364 | Support,motor Mount |
|
- | |||||
| 22 | 5304471365 | Bracket,motor Cover |
|
- | |||||
| 24 | 5304471367 | Shroud,fan Housing ,condenser |
|
- | |||||
| 25 | 5304471368 | Bracket,condenser ,right |
|
- | |||||
| 26 | 5304471370 | Brace,platform ,support |
|
- | |||||
| 28 | 5304471372 | Platform,unit Support |
|
- | |||||
| 30 | 5304471374 | Base,unit Chassis |
|
- | |||||
| 32 | 5304471376 | Bracket,evaporator ,left |
|
- | |||||
| 34 | 5304471379 | Tray,drain Pan |
|
- | |||||
| 35 | 5304471377 | Bracket,evaporator ,right |
|
- | |||||
| 36 | 5304471380 | Base,compressor |
|
- | |||||
| 39 | 5304471369 | Bracket,condenser ,left |
|
- | |||||
| 46 | 5304471070 | Strap,capacitor Clamp |
|
- | |||||
| 49 | 5304471388 | Cover,control Box |
|
- | |||||
| 50 | 5304471389 | Control Box |
|
- | |||||
| 52 | 5304471392 | Clip,power Cord |
|
- | |||||
| 53 | 5304471393 | Bracket,safety |
|
- | |||||
| 54 | 5304471394 | Bracket,window Lock ,angle |
|
- | |||||
| 55 | 5304471395 | Frame,window Panel ,seal |
|
$ 40.66 | |||||
| 56 | 5304471396 | Grille,rear |
|
- | |||||
| 57 | 5304471643 | Rail,shutter Track ,top |
|
- | |||||
| 58 | 5304521206 | Screw Kit,top Rail Mount (Replaces: 5304471644) |
|
- | |||||
| 59 | 5304471645 | Hardware Kit,installation |
|
- | |||||
| 60 | 5304471646 | Seal Kit,window ,foam Strips |
|
$ 39.53 | |||||
| 61 | 5304471647 | Cabinet,wrapper/sleeve |
|
- | |||||
| 62 | 5304471648 | Channel,side Mount ,slide |
|
$ 37.71 | |||||
| F1 | 5304471324 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304471354 | Control Panel,w/overlay |
|
- | |||||
| F17 | 5304471360 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F20 | 5304471363 | Motor,fan |
|
- | |||||
| F23 | 5304471366 | Fan Blade,propeller |
|
$ 75.19 | |||||
| F27 | 5304471371 | Condenser |
|
- | |||||
| F29 | 5304471373 | Tube,discharge |
|
- | |||||
| F31 | 5304471375 | Tube,capillary |
|
- | |||||
| F33 | 5304471378 | Evaporator |
|
- | |||||
| F37 | 5304471250 | Compressor |
|
- | |||||
| F38 | 5304471381 | Tube,suction |
|
- | |||||
| F4 | 5304471327 | Filter,air |
|
- | |||||
| F40 | 5304471273 | Remote Control,transmitter |
|
- | |||||
| F41 | 5304471382 | Wiring Harness,compressor |
|
- | |||||
| F42 | 5304512375 | Thermistor,evaporator ,sensor (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F43 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F44 | 5304471384 | Pc Board,control ,main |
|
- | |||||
| F45 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F47 | 5304471385 | Capacitor,motor |
|
- | |||||
| F48 | 5304471386 | Capacitor,compressor |
|
- | |||||
| F51 | 5304471390 | Power Cord,electric ,lcdi |
|
- | |||||
| F6 | 5304471349 | Louver,vertical ,with Handle |
|
- | |||||
| F7 | 5304471350 | Louver,vertical |
|
- | |||||
| F8 | 5304471351 | Link,vertical Louver |
|
- | |||||
| F9 | 5304471352 | Louver,horizontal |
|
- |
