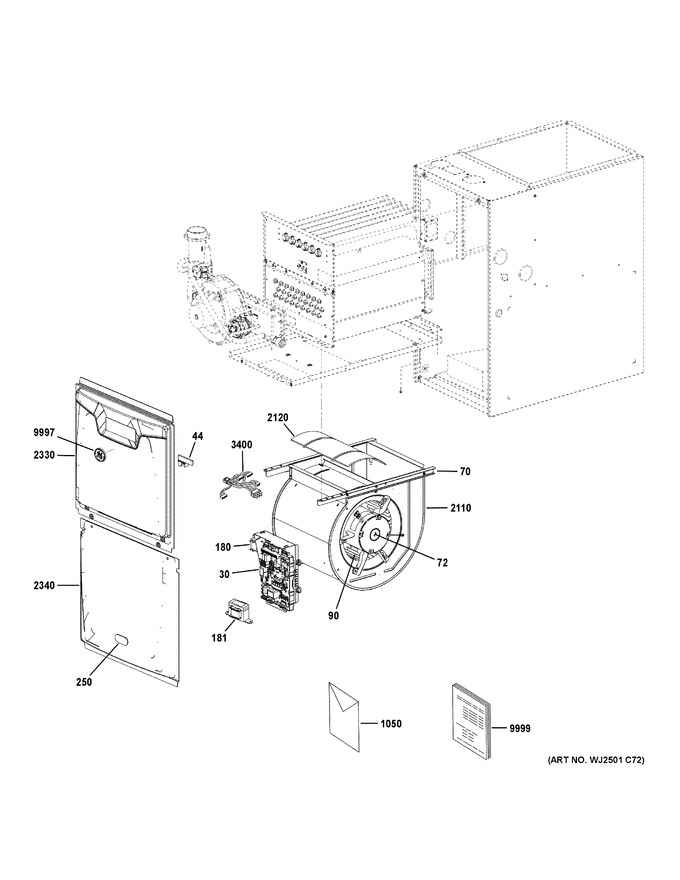

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | 27P19 | Ignition Control |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 23V79 | Motor Repl 3/4hp 115v Ct |
|
- | |||||
| 90 | 16596 | Lb-29333bm Wheel-(cto) |
|
$ 266.40 | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 250 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 1050 | 537922-01 | Wire Diagram Sticker - 96g1uhe-(cto) |
|
- | |||||
| 2110 | 57M87 | Hsg-blwr 10x8 612256-02-(cto) |
|
- | |||||
| 2120 | 68W49 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 2340 | 623653-04U | Btm Door C-width 90% Uf Vest-(cto) |
|
- | |||||
| 3400 | 22U03 | Harness-motor X13 Constant |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
