Room Air Conditioner
New Model Search:

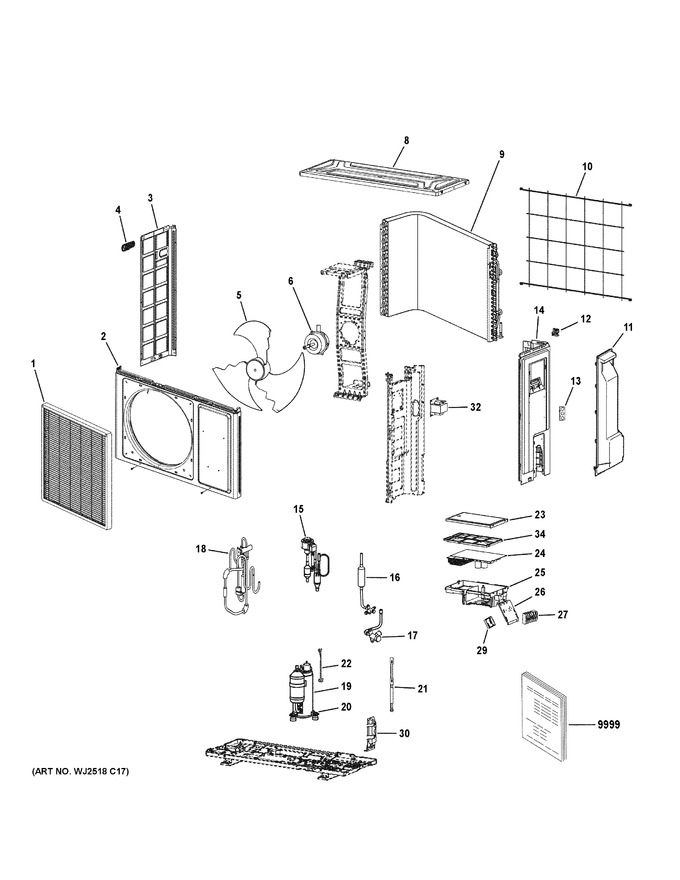

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X35904 | Front Grille |
|
- | |||||
| 2 | WJ71X35905 | Front Panel |
|
- | |||||
| 3 | WJ71X35906 | Left - Side Panel |
|
- | |||||
| 4 | WJ71X35893 | Handle |
|
- | |||||
| 5 | WJ73X32538 | Fan Blade |
|
- | |||||
| 6 | WJ94X34097 | Outdoor Motor |
|
- | |||||
| 8 | WJ71X35907 | Top - Cover Panel |
|
- | |||||
| 9 | WJ88X35902 | Condenser Assembly |
|
- | |||||
| 10 | WJ71X27893 | Rear Grille |
|
- | |||||
| 11 | WJ76X35908 | Cover |
|
- | |||||
| 12 | WJ01X35881 | Temperature Sensor Clamp |
|
- | |||||
| 13 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 14 | WJ71X35909 | Right - Service Panel |
|
- | |||||
| 15 | WJ53X23148 | Electronic Expansion Valve |
|
$ 126.89 | |||||
| 16 | WJ53X35895 | 3 Way Valve |
|
- | |||||
| 17 | WJ53X35341 | 2 - Way Valve |
|
- | |||||
| 18 | WJ53X35911 | 4 Way Valve Assembly |
|
- | |||||
| 19 | WJ98X35860 | Compressor |
|
- | |||||
| 20 | WJ01X26442 | Compressor Nut |
|
- | |||||
| 21 | WJ27X26437 | Compressor Heater |
|
- | |||||
| 22 | WJ35X34106 | Wiring Harness |
|
- | |||||
| 23 | WJ76X35364 | Control Box Cover |
|
- | |||||
| 24 | WJ26X35861 | Outdoor Pcb Assembly |
|
- | |||||
| 25 | WJ76X35862 | Control Box |
|
- | |||||
| 26 | WJ76X35899 | Electrical Connector Box |
|
- | |||||
| 27 | WJ35X35864 | Terminal Block |
|
- | |||||
| 29 | WJ26X35865 | Rj45 Module |
|
- | |||||
| 30 | WJ53X35910 | Valve Set |
|
- | |||||
| 32 | WJ27X23006 | Reactor |
|
- | |||||
| 34 | WJ65X35361 | Pcb Board Bracket |
|
- | |||||
| 9999 | 31-5001075 | Printed And Onlineinstall Instructions |
|
- |
