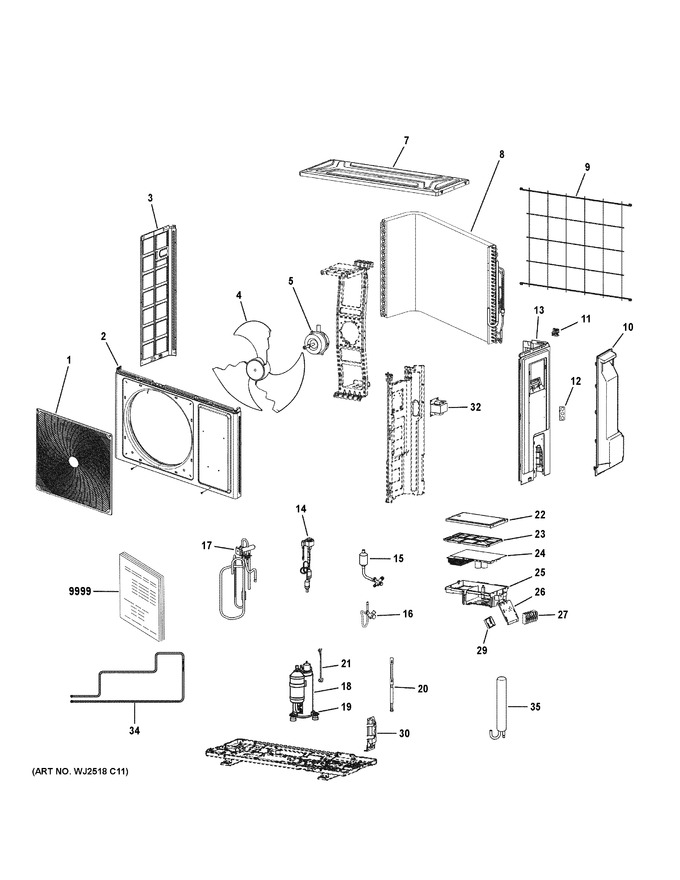

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X35853 | Front Grille |
|
- | |||||
| 2 | WJ71X35913 | Front Panel |
|
- | |||||
| 3 | WJ71X34238 | Left Panel |
|
- | |||||
| 4 | WJ73X34155 | Fan Blade |
|
- | |||||
| 5 | WJ94X34156 | Outdoor Motor |
|
- | |||||
| 7 | WJ71X34239 | Top Panel |
|
- | |||||
| 8 | WJ88X35855 | Condenser Assembly |
|
- | |||||
| 9 | WJ71X34234 | Rear Grille |
|
- | |||||
| 10 | WJ71X35856 | Top-cover Panel |
|
- | |||||
| 11 | WJ65X35337 | Temperature Sensor Clamp |
|
- | |||||
| 12 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 13 | WJ71X34243 | Side/rear Panel Assy |
|
- | |||||
| 14 | WJ53X23148 | Electronic Expansion Valve |
|
$ 126.89 | |||||
| 15 | WJ53X35857 | 3 Way Valve |
|
- | |||||
| 16 | WJ53X35867 | 2 Way Valve |
|
- | |||||
| 17 | WJ53X35868 | 4 Way Valve |
|
- | |||||
| 18 | WJ98X35360 | Compressor |
|
- | |||||
| 19 | WJ01X22974 | Flange Nut |
|
- | |||||
| 20 | WJ27X26437 | Compressor Heater |
|
- | |||||
| 21 | WJ35X34144 | Wiring Harness |
|
- | |||||
| 22 | WJ76X35364 | Control Box Cover |
|
- | |||||
| 23 | WJ65X35361 | Pcb Board Bracket |
|
- | |||||
| 24 | WJ26X35362 | Outdoor Pcb Assembly |
|
- | |||||
| 25 | WJ76X35862 | Control Box |
|
- | |||||
| 26 | WJ35X35863 | Electrical Box Connector |
|
- | |||||
| 27 | WJ35X35864 | Terminal Block |
|
- | |||||
| 29 | WJ26X35865 | Rj45 Module |
|
- | |||||
| 30 | WJ53X35357 | Valve Set |
|
- | |||||
| 32 | WJ27X23006 | Reactor |
|
- | |||||
| 34 | WJ27X34253 | Heater |
|
- | |||||
| 35 | WJ53X35359 | Accumulator |
|
- | |||||
| 9999 | 31-5001078 | Printed And Onlineinstall Instructions |
|
- |
