SELECT A DIAGRAM
Room Air Conditioner
New Model Search:

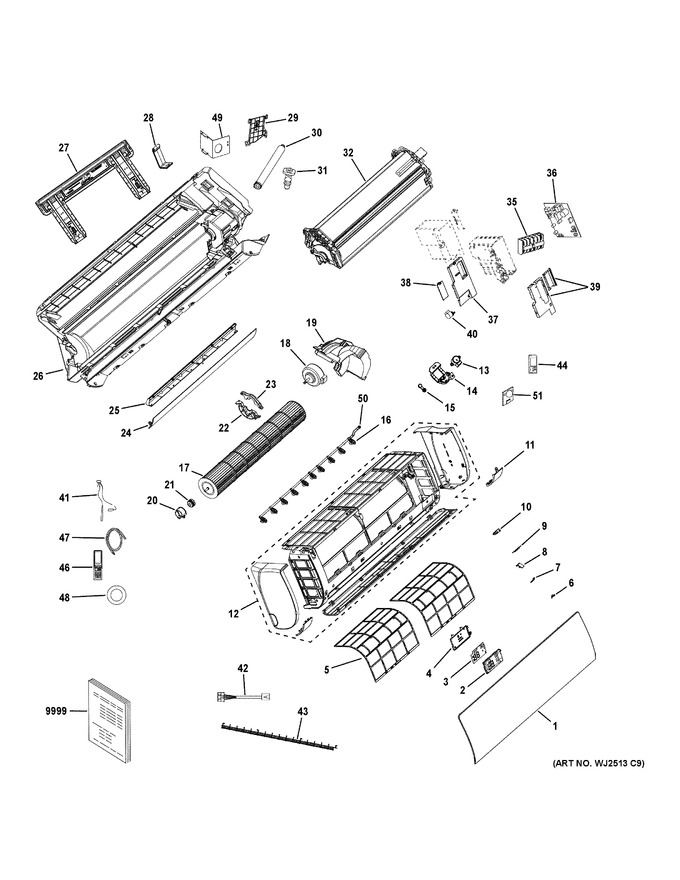

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X35830 | Panel |
|
- | |||||
| 2 | WJ76X26408 | Display Board Box |
|
- | |||||
| 3 | WJ26X26460 | Display Panel |
|
- | |||||
| 4 | WJ71X35831 | Display Panel Assembly |
|
- | |||||
| 5 | WJ85X35814 | Air Filter |
|
- | |||||
| 6 | WJ01X26403 | Panel Latch |
|
- | |||||
| 7 | WJ01X26404 | Pin |
|
- | |||||
| 8 | WJ76X35815 | Screw Cover |
|
- | |||||
| 9 | WJ26X26405 | Power Switch |
|
- | |||||
| 10 | WJ76X26407 | Power Switch Box |
|
- | |||||
| 11 | WJ76X35816 | Cover Board |
|
- | |||||
| 12 | WJ71X35351 | Casing Assembly |
|
- | |||||
| 13 | WJ94X26438 | Vertical Louver Motor |
|
- | |||||
| 14 | WJ65X26406 | Vertical Louver Motor Bracket |
|
- | |||||
| 15 | WJ01X26402 | Connecting Rod Link |
|
- | |||||
| 16 | WJ71X35817 | Vertical Louvers |
|
- | |||||
| 17 | WJ73X35818 | Fan Blower |
|
- | |||||
| 18 | WJ94X35353 | Indoor Motor |
|
- | |||||
| 19 | WJ76X35354 | Motor Cover |
|
- | |||||
| 20 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 21 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 22 | WJ65X26400 | Motor Bracket Bottom |
|
- | |||||
| 23 | WJ65X25953 | Motor Bracket Top |
|
- | |||||
| 24 | WJ73X35355 | Blade |
|
- | |||||
| 25 | WJ71X35819 | Vert. Lvr Housing |
|
- | |||||
| 26 | WJ76X35356 | Frame Assembly |
|
- | |||||
| 27 | WJ65X34169 | Mounting Bracket |
|
- | |||||
| 28 | WJ65X33080 | Drain Pipe Bracket |
|
- | |||||
| 29 | WJ76X29674 | Pipe Chanel Cover |
|
- | |||||
| 30 | WJ53X27918 | Drain Pipe |
|
- | |||||
| 31 | WJ01X26401 | Drain Plug |
|
- | |||||
| 32 | WJ87X35820 | Evaporator Assembly |
|
- | |||||
| 35 | WJ35X35821 | Terminal Block |
|
- | |||||
| 36 | WJ26X35352 | Indoor Pcb |
|
- | |||||
| 37 | WJ76X35822 | Pcb Cover Panel |
|
- | |||||
| 38 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 39 | WJ76X35823 | Pcb Cover Panel |
|
- | |||||
| 40 | WJ94X35824 | Vertical Louver Motor |
|
- | |||||
| 41 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 42 | WJ35X35825 | Smarthq Wire Harness |
|
- | |||||
| 43 | WJ71X35826 | Wire Guard |
|
- | |||||
| 44 | WJ26X32653 | Wi-fi Module |
|
- | |||||
| 46 | WJ26X35334 | Remote Control |
|
- | |||||
| 47 | WJ71X34093 | Drain Hose |
|
- | |||||
| 48 | WJ53X28913 | Guard Ring |
|
- | |||||
| 49 | WJ65X35827 | Leak Sensor Bracket |
|
- | |||||
| 50 | WJ01X35828 | Vertical Louver Rod |
|
- | |||||
| 51 | WJ26X26441 | Ocupancy Sensor |
|
- | |||||
| 9999 | 49-5001069 | Printed And Onlineowners Manual |
|
- | |||||
| 9999 | 31-5001077 | Printed And Onlineinstall Instructions |
|
- |
