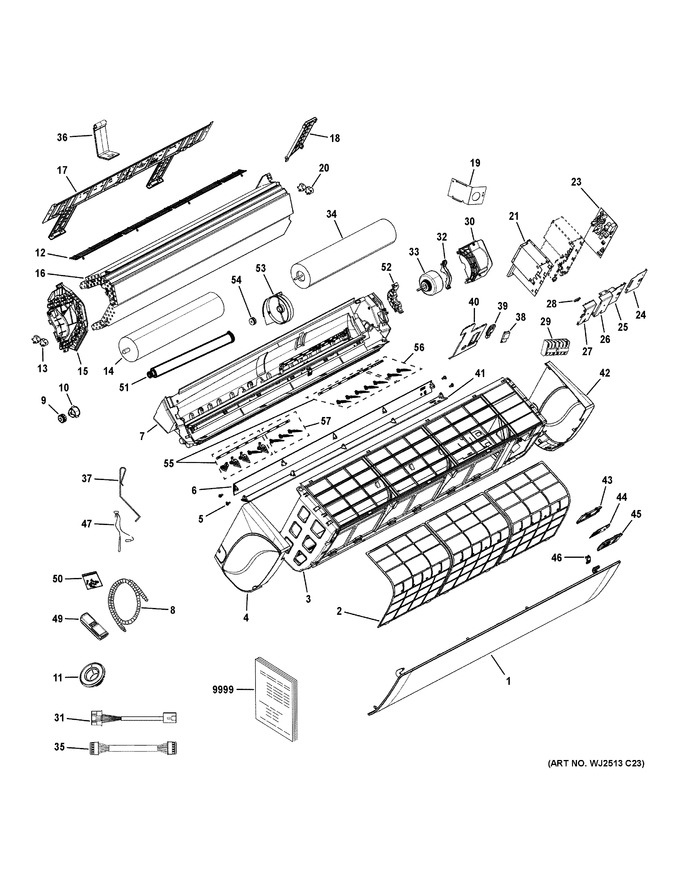

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ76X30853 | Top Panel |
|
- | |||||
| 2 | WJ85X22778 | Air Filter |
|
- | |||||
| 3 | WJ76X35840 | Casing Assembly |
|
- | |||||
| 4 | WJ71X30533 | Left End Cap |
|
- | |||||
| 5 | WJ01X24235 | Shaft Jacket |
|
- | |||||
| 6 | WJ71X24239 | Bottom Horizontal Louver |
|
- | |||||
| 7 | WJ71X30722 | Evap Case Assy W/drain Pan |
|
- | |||||
| 8 | WJ71X34093 | Drain Hose |
|
- | |||||
| 9 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 10 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 11 | WJ53X28913 | Guard Ring |
|
- | |||||
| 12 | WJ71X29515 | Fan Guard |
|
- | |||||
| 13 | WJ94X35841 | Vertical Louver Motor |
|
- | |||||
| 14 | WJ73X35842 | Fan Blower |
|
- | |||||
| 15 | WJ65X31114 | Evap. Support |
|
- | |||||
| 16 | WJ87X31830 | Evaporator Coil |
|
- | |||||
| 17 | WJ65X30833 | Mounting Bracket |
|
- | |||||
| 18 | WJ65X31113 | Line Set Plate |
|
- | |||||
| 19 | WJ65X35827 | Leak Sensor Bracket |
|
- | |||||
| 20 | WJ94X29526 | Stepper Motor2 |
|
- | |||||
| 21 | WJ76X29662 | Board Protector |
|
- | |||||
| 23 | WJ26X35843 | Indoor Main Pcb |
|
- | |||||
| 24 | WJ76X29660 | Electrical Box Cover |
|
- | |||||
| 25 | WJ76X24362 | Electrical Box Cover (plastic) |
|
- | |||||
| 26 | WJ76X29514 | Protect Board Of Cover Board 2 |
|
- | |||||
| 27 | WJ76X29516 | Cover Board Of Eletric Box2 |
|
- | |||||
| 28 | WJ76X23057 | Power Cable Cover |
|
- | |||||
| 29 | WJ35X35821 | Terminal Block |
|
- | |||||
| 30 | WJ76X29520 | Motor Cover |
|
- | |||||
| 31 | WJ35X35825 | Smarthq Wire Harness |
|
- | |||||
| 32 | WJ65X26398 | Motor Bracket Top |
|
- | |||||
| 33 | WJ94X23054 | Indoor Motor |
|
- | |||||
| 34 | WJ73X35844 | Fan Blower |
|
- | |||||
| 35 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 36 | WJ65X29559 | Drain Pipe Bracket |
|
- | |||||
| 37 | WJ26X29675 | Sensor Clip |
|
- | |||||
| 38 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 39 | WJ26X32653 | Wi-fi Module |
|
- | |||||
| 40 | WJ71X29524 | Access Panel |
|
- | |||||
| 41 | WJ94X24391 | Top Horizontal Louver |
|
- | |||||
| 42 | WJ71X30534 | Right End Cap |
|
- | |||||
| 43 | WJ76X26408 | Display Board Box |
|
- | |||||
| 44 | WJ26X26460 | Display Panel |
|
- | |||||
| 45 | WJ26X35339 | Display Panel Assembly |
|
- | |||||
| 46 | WJ76X29521 | Screw Cover |
|
- | |||||
| 47 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 49 | WJ26X35395 | Remote Control |
|
- | |||||
| 50 | WJ01X34135 | Screw Kit |
|
- | |||||
| 51 | WJ53X29673 | Drain Hose |
|
- | |||||
| 52 | WJ65X26399 | Motor Bracket Bottom |
|
- | |||||
| 53 | WJ65X29522 | Fan Bracket |
|
- | |||||
| 54 | WJ73X30835 | Bearing 1 |
|
- | |||||
| 55 | WJ71X30535 | Connecting Rod |
|
- | |||||
| 56 | WJ71X29734 | Vertical Louver 2 |
|
- | |||||
| 57 | WJ71X30834 | Vertical Louver 3 |
|
- | |||||
| 9999 | 49-5001068 | Printed And Onlineowners Manual |
|
- | |||||
| 9999 | 31-5001074 | Printed And Onlineinstall Instructions |
|
- |
