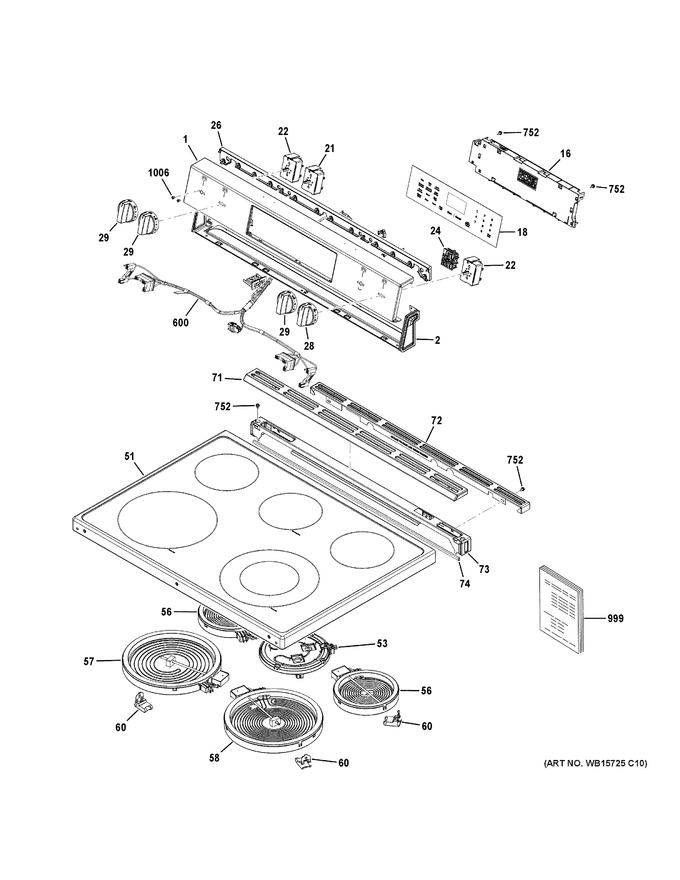

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X51147 | Control Panel - Black |
|
- | |||||
| 2 | WB56X47212 | Control Panel Lower Black |
|
- | |||||
| 16 | WB27X48615 | Obc2 Control (flashed) |
|
- | |||||
| 18 | WB07X47351 | Overlay |
|
- | |||||
| 21 | WB24X49826 | Infinite Switch Control |
|
- | |||||
| 22 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 24 | WB24X25013 | Switch Infinite Control |
|
- | |||||
| 26 | WB07X47114 | Control Panel Filler |
|
- | |||||
| 28 | WB30X51146 | Knob - Black |
|
- | |||||
| 29 | WB30X51148 | Knob - Black |
|
- | |||||
| 51 | WB62X47098 | Maintop |
|
- | |||||
| 53 | WB30X47091 | Warmer Element |
|
- | |||||
| 56 | WB30X47331 | 5.5 In Radiant Element |
|
- | |||||
| 57 | WB30X47333 | 9 In Radiant Element |
|
- | |||||
| 58 | WB30X49746 | Radiant Element 9 In Dual |
|
- | |||||
| 60 | WB02X48326 | Retainer Clip |
|
- | |||||
| 71 | WB07X47262 | Upper Vent Trim- Black |
|
- | |||||
| 72 | WB07X47260 | Vent Trim- Black |
|
- | |||||
| 73 | WB07X47255 | Lower Vent Trim |
|
- | |||||
| 74 | WB35X47145 | Vent Trim Gasket |
|
- | |||||
| 600 | WB18X49830 | Maintop Harness |
|
- | |||||
| 752 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 999 | 31-2001199 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 31-2001194 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2001190 | Pm Owners Manual |
|
- | |||||
| 1006 | WB01X23501 | Scr 8-32 Tt Flp .270 |
|
- |
