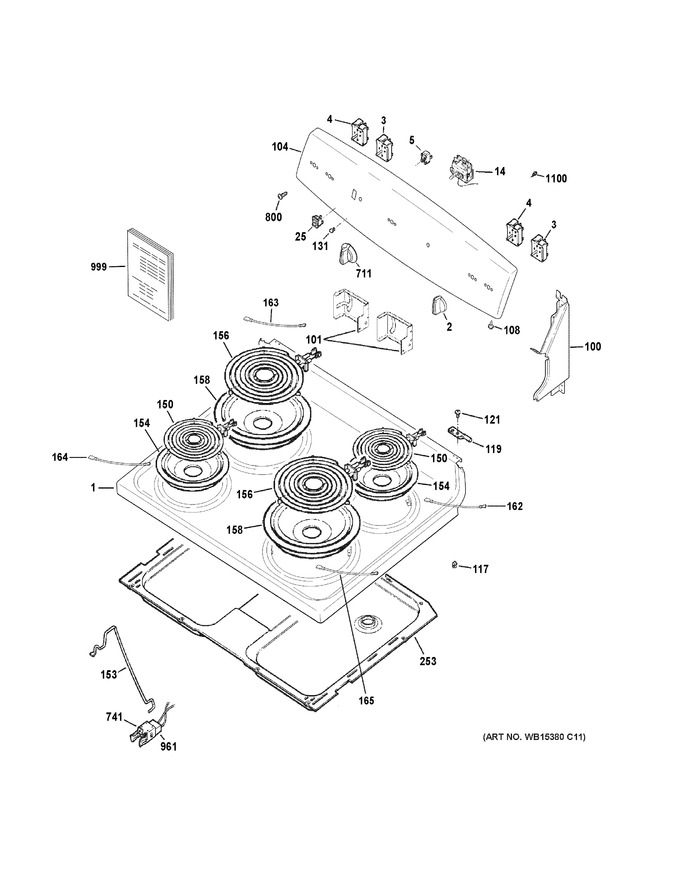

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Control Panel & Cooktop
Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X48586 | Black Range Top |
|
- | |||||
| 2 | WS01L11533 | Knob Valve (Replaces: WB03X21356) |
|
Immediately | $ 6.62 | ||||
| 3 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 4 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 14 | WB24X21192 | Thermostat Electric |
|
- | |||||
| 25 | WB24X20458 | Switch Rocker Sealed |
|
- | |||||
| 100 | WB07X20197 | End Support Lt |
|
- | |||||
| 100 | WB07X20194 | End Support Rt |
|
- | |||||
| 101 | WB37X20196 | Bracket Cook Top Right |
|
- | |||||
| 101 | WB37X20193 | Bracket Cook Top Left |
|
- | |||||
| 104 | WB36X21589 | Trim Control |
|
- | |||||
| 108 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 121 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 150 | WB31X46067 | 6" Inch Surface Burner With Sensor |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WB31T10014 | 6 Inch Black Porcelain Burner Bowl-elec |
|
- | |||||
| 156 | WB31X46066 | 8" Inch Surface Burner With Sensor |
|
- | |||||
| 158 | WG02L01430 | 8 Inch Black Porcelain Burner Bowl-elec (Replaces: WB31T10015) |
|
Immediately | $ 24.33 | ||||
| 162 | WB18X27485 | Harness Surface Unit Rr |
|
- | |||||
| 163 | WB18X27486 | Harness Surface Unit Lr |
|
- | |||||
| 164 | WB18X27487 | Harness Surface Unit Lf |
|
- | |||||
| 165 | WB18X27488 | Harness Surface Unit Rf |
|
- | |||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 711 | WB03X21367 | Knob Thermostat Asm |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WS01A01257 | Screw 8-32 Tpt Flr 215 Sn (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 999 | 49-2001027 | Pm Owners Manual |
|
- | |||||
| 999 | 49-2000686 | Pm Insert Instructions |
|
- | |||||
| 999 | 31-2000872 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-2001036 | Pm Quick Owners Manual |
|
- | |||||
| 1100 | WS01A01408 | Screw (blk) (Replaces: WB1X5716) |
|
$ 4.20 |
