SELECT A DIAGRAM

01 - Compressor Parts


02 - Condenser Parts


03 - Evap Parts

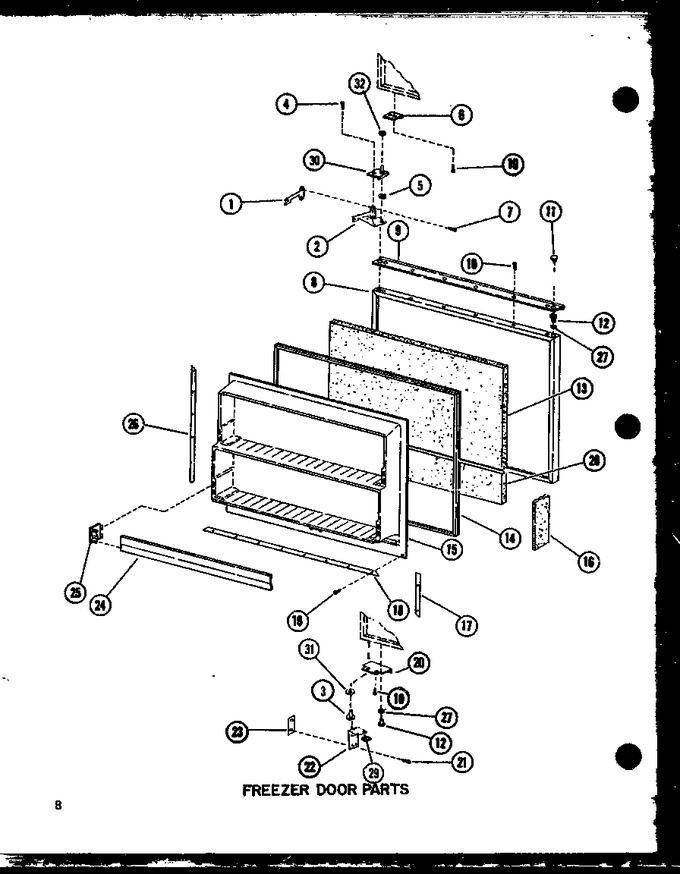

04 - Fz Door Parts


05 - Interior Parts


06 - Interior Parts


07 - Ref Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3143603		Shim		Appelez-nous	-
1	A3143502		Shim K		Appelez-nous	-
1	A3143501		Shim K		Appelez-nous	-
2	C8800201		Center Hinge Assy		Appelez-nous	-
3	B5750901		Center Hinge Assy		Appelez-nous	-
4	M0205441		Screw K		Appelez-nous	-
5	B5779601		Washer Hinge K		Appelez-nous	-
6	A3139801		Stop Door		Appelez-nous	-
7	M0205731		Screw Phillips		Appelez-nous	-
7	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
8	C8807321		Outer Door Shell, Fz, White		Appelez-nous	-
8	C8807323		Outer Door Shell, Fz, Avocado		Appelez-nous	-
8	C8807322		Outer Door Shell, Fz, Copperto		Appelez-nous	-
8	C8807325		Outer Door Shell, Fz, Almond		Appelez-nous	-
8	C8807324		Door Fr-g-t-bc20e		Appelez-nous	-
9	C8704602		Handle		Appelez-nous	-
10	M0205631		Machine Screw		Appelez-nous	-
11	M0310610		Plug		Appelez-nous	-
12	C3652901		Bushing, Hinge Pin		Appelez-nous	-
13	B0523574		Insulation		Appelez-nous	-
14	D3928209		Gasket		Appelez-nous	-
15	D7156203		Inner Door Panel		Appelez-nous	-
16	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
17	D3928109		Retainer Gasket		Appelez-nous	-
18	D3928102		Retainer Gasket		Appelez-nous	-
19	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
20	A3197801		Stop Door		Appelez-nous	-
21	M0246159		Screw		Appelez-nous	-
22	C8814802		Bracket Hinge K		Appelez-nous	-
23	A3143603		Shim		Appelez-nous	-
23	A3143601		Shim		Appelez-nous	-
23	A3143602		Shim		Appelez-nous	-
24	D7415706		Retainer		Appelez-nous	-
25	C3680907		Support		Appelez-nous	-
25	C3680908		Support		Appelez-nous	-
26	D3928110		Retainer Gasket		Appelez-nous	-
27	M0500902		O Ring		Appelez-nous	-
28	D7398701		Foam Slab 2pcs. = 1		Appelez-nous	-
29	B8303201		Plug Button Hinge		Appelez-nous	-
30	C8814901		Pin, Hinge K		Appelez-nous	-
31	M0274014		Washer K		Appelez-nous	-
32	M0274013		Washer K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
