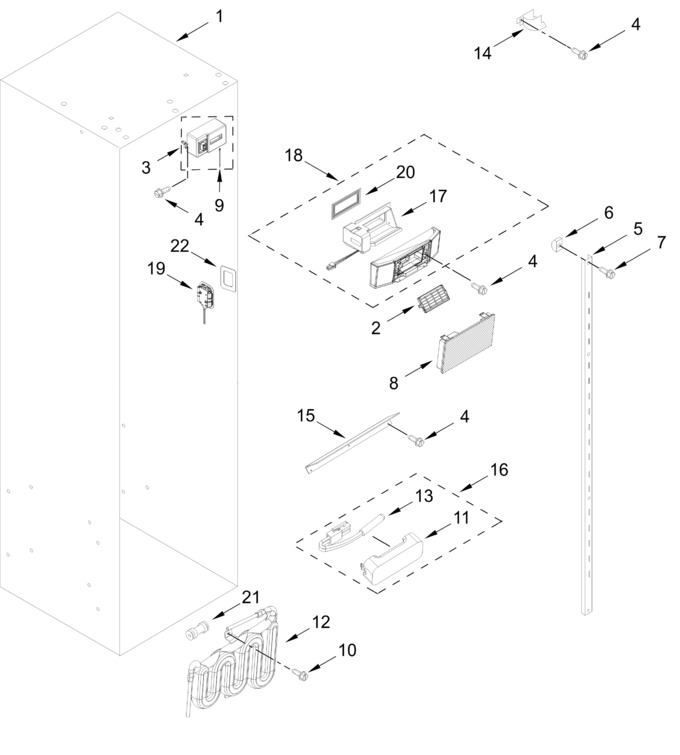

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI5B043898161B9E887C9B86F7C890BB1B		Liner (not Serviced)		Appelez-nous	-
2	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34
3	W11447198		Cover, Air Diffuser				$ 132.62
4	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
5	W11625043		Ladder, Shelf   (Replaces: W11481390)		Appelez-nous	-
6	520965		Support, Ladder				$ 31.35
7	W10808291		Screw		Appelez-nous	-
8	W11784362		Cover, Diffuser Center   (Replaces: W11745781)		Appelez-nous	-
9	WP2302937		Thermistor   (Replaces: 2302937)				$ 88.41
10	W10141518		Screw				$ 9.54
11	W10609678		Cover, Thermistor				$ 39.19
12	W11825825		Reservoir, Water   (Replaces: W11463083)				$ 139.14
13	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
14	W11443086		Guard, Air Return		Appelez-nous	-
15	W10782835		Diverter, Crisper Cover				$ 63.35
16	W11625042		Thermistor Assembly   (Replaces: W11550866)			Immediately	$ 66.74
17	WP2220377		Baffle, Air   (Replaces: 2220377)			Immediately	$ 381.05
18	W11630597		Diffuser, Air   (Replaces: W11449562)			Immediately	$ 349.91
19	W11484836		Light Module, Led   (Replaces: W11229041)			Immediately	$ 27.01
20	W11480891		Gasket, Air Baffle				$ 30.11
21	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
22	W10672548		Shim, Led				$ 21.11
