SELECT A DIAGRAM

Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

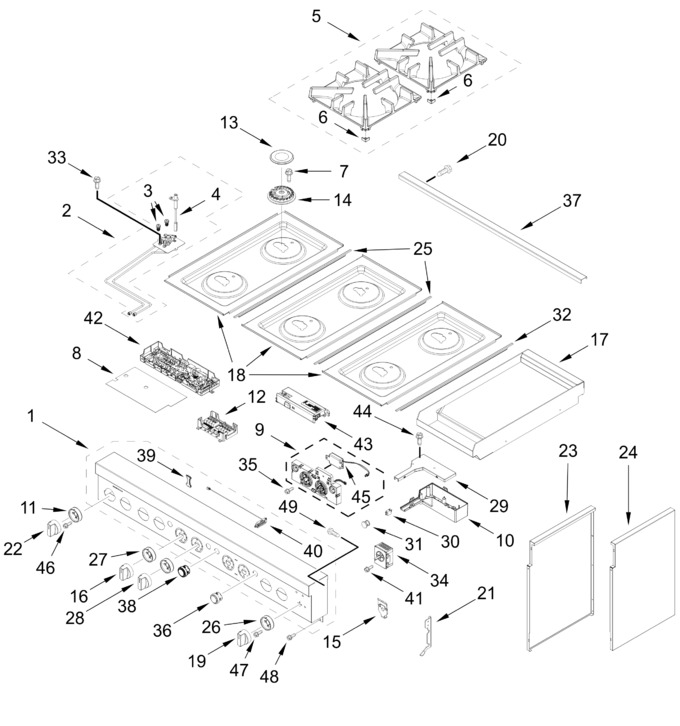

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11289593		Control Panel   (Replaces: W10878256)				$ 891.92
2	W11319741		Orifice Holder Assembly   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492266		Interface, User   (Replaces: W11436323)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11319224		Cap, Burner (black, Set Of 6)   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W11496092)				$ 118.01
17	ARI4865CFF8563D5F77A3C528079CFC39A7		Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page)		Appelez-nous	-
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
19	W11620693		Knob, Griddle (stainless)   (Replaces: W11496089)		Appelez-nous	-
20	7101P33860		Screw		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 52.49
23	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
24	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11317495		Bezel, Griddle (brass)   (Replaces: W11104966)				$ 55.28
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	7101P30960		Screw		Appelez-nous	-
42	W11839801		Manager, Appliance (powermax)   (Replaces: W11100270)				$ 409.76
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
46	W11509770		Screw   (Replaces: W11328357)				$ 14.23
47	W10674068		Screw				$ 24.39
48	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
49	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	W11319743		Orifice Holder Assembly   (Replaces: W10892505)				$ 125.13
	ARI80B05B26EE8A2BF9563CC79FD4467BAD		(left Front & Right Center Front)		Appelez-nous	-
	ARI1D437A95BB9951E88D2C823ABD70D6CC		(left Rear, Left Center Front, Right Center Rear)		Appelez-nous	-
	W11319746		Orifice Holder Assembly   (Replaces: W10892495)				$ 123.91
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	ARI853D74B62D6355F5A369BA19932DE009		(all But Left Center Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11580024		Igniter   (Replaces: W11238758)			Immediately	$ 23.66
	W11238756		Igniter			Immediately	$ 67.96
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	ARI5845850909E820290830A3E3A44CF77F		(left Front, Left Rear, Right Center Front)		Appelez-nous	-
	W11316701		Panel, Center Cooktop   (Replaces: W11038241)				$ 502.01
	W11316702		Panel, Center Cooktop   (Replaces: W11038249)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
	W11319740		Orifice Holder Assembly   (Replaces: W10892810)				$ 122.67
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	W11620694		Orifice Holder Assembly   (Replaces: W11505829)		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	W11319747		Orifice Holder Assembly   (Replaces: W10892444)		Appelez-nous	-
	ARI5EB7AAED92D9FC182D9A31E6CE33E432		(left Center Front, Right Center Rear)		Appelez-nous	-
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	ARI1FACBFA861FECD9D124A08E1EC1C51C5		(for 4 Oven Knobs)		Appelez-nous	-
