Diagram for Burner Box And Orifice Holder Assembly Parts
Burner Box And Orifice Holder Assembly Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11788842 Kickplate (juniper)   (Replaces: W11726297) Appelez-nous -
2 W11765274 Back, Chassis   (Replaces: W11758516) Appelez-nous -
3 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

4 W11109583 Duct, Bottom (30 In) Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10859931 Leveler   (Replaces: 9760860) Special Order $ 119.11

7 W10908710 Base, Leveling Leg Special Order $ 145.26

8 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

9 W11369237 Cabinet, Appliance Manager Special Order $ 89.38

10 W10115869 Shaft, Long In-Stock Immediately $ 109.36

11 W10115793 Shaft, Short Special Order $ 75.83

12 489504 E-ring Special Order $ 7.40

13 W11333179 Panel, Left Cabinet Side   (Replaces: W11106881) Special Order $ 419.69

14 W11333303 Panel, Right Cabinet Side   (Replaces: W11106880) Special Order $ 421.41

15 W11675844 Gasket, Cavity (30 In)   (Replaces: W11115328) In-Stock Immediately $ 74.56

16 W11050145 Duct-chassis, Rear Appelez-nous -
17 W11368831 Channel, Wire Appelez-nous -
18 W11362015 Retainer, Gasket (9 In) Special Order $ 158.18

19 W11324986 Top, Chassis Appelez-nous -
20 W11040802 Bottom, Chassis Appelez-nous -
21 W11103334 Panel, Back Top Appelez-nous -
22 W11034134 Panel, Back Bottom Appelez-nous -
23 W11320155 Bracket, Pressure Regulator   (Replaces: W11096823) Appelez-nous -
24 W11087491 Support, Channel Appelez-nous -
25 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

26 W11320147 Drawer, Appliance Manager   (Replaces: W11106341) Appelez-nous -
27 W11199181 Cover, Foot (left) In-Stock Immediately $ 91.95

28 W11190223 Bracket, Bake Alignment Special Order $ 82.80

29 W11239228 Valve, Dual   (Replaces: W10145680) In-Stock Immediately $ 336.96

30 W11765962 Bracket, Rear Chassis   (Replaces: W11758326) Appelez-nous -
W11199178 Cover, Foot (right) Special Order $ 90.96


    View Diagram in Separate Window     Print Icon   Print Part List

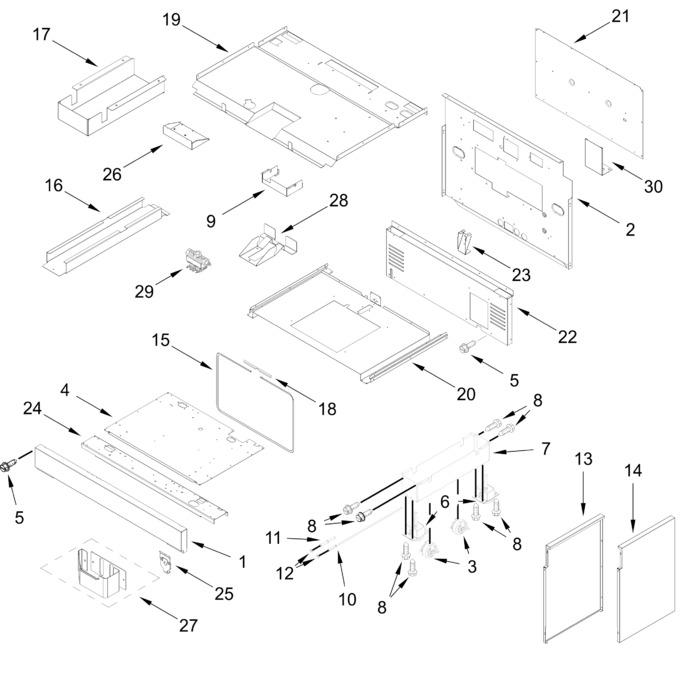

Diagram for KFGS930SJP00
