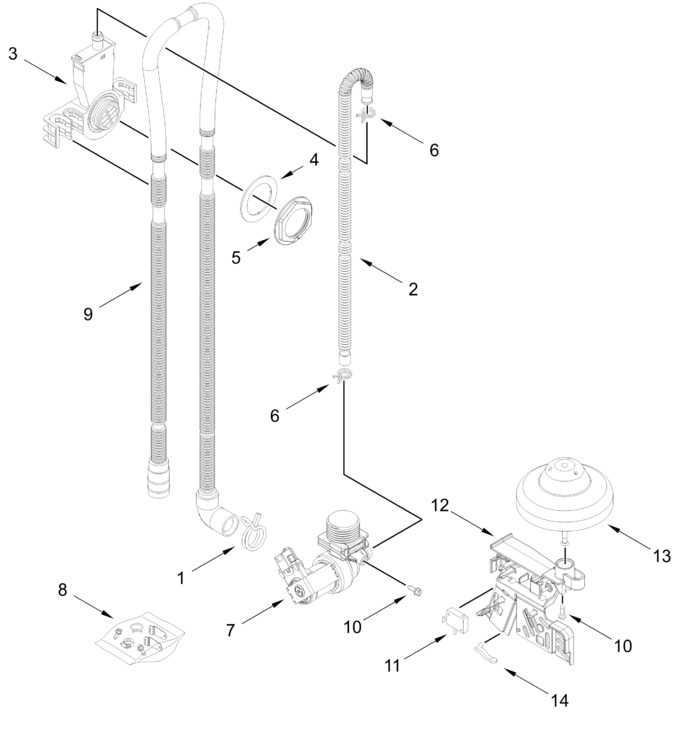

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 8.81
2	W10878507		Inlet Hose   (Replaces: W10769066)			Immediately	$ 77.06
3	WPW10195536		Inlet, Water (also Order Water Inlet Gasket)   (Replaces: W10195536)			Immediately	$ 86.31
4	WP8531323		Gasket, Water Inlet   (Replaces: 8531323)			Immediately	$ 41.07
5	WPW10508676		Nut, Inlet (also Order Water Inlet Gasket)   (Replaces: W10508676)				$ 19.35
6	W11806544		Clamp, Hose   (Replaces: W11758980)		Appelez-nous	-
7	W11684544		Fill Valve Assembly   (Replaces: W11669945)			Immediately	$ 57.99
8	W11807873		Miscellaneous Parts Bag (includes (2) Screws, (2) Clamps, (2) Brackets)   (Replaces: W11770376)		Appelez-nous	-
9	WPW10545278		Drain Loop With Check Valve Assembly   (Replaces: W10545278)			Immediately	$ 74.41
10	WP304231		Screw   (Replaces: 304231)			Immediately	$ 8.14
11	WPW10195039		Switch, Overfill Control   (Replaces: W10195039)			Immediately	$ 77.42
12	WPW10316267		Standpipe, Overfill   (Replaces: W10316267)				$ 31.90
13	W11814886		Float & Retainer Assembly   (Replaces: W10346525)			Immediately	$ 79.15
14	WPW10195037		Lever, Overfill Switch   (Replaces: W10195037)			Immediately	$ 11.74
