SELECT A DIAGRAM

Air Flow Parts


Cabinet And Installation Parts


Control Panel Parts


Door Parts


Interior And Ventilation Parts


Turntable Parts

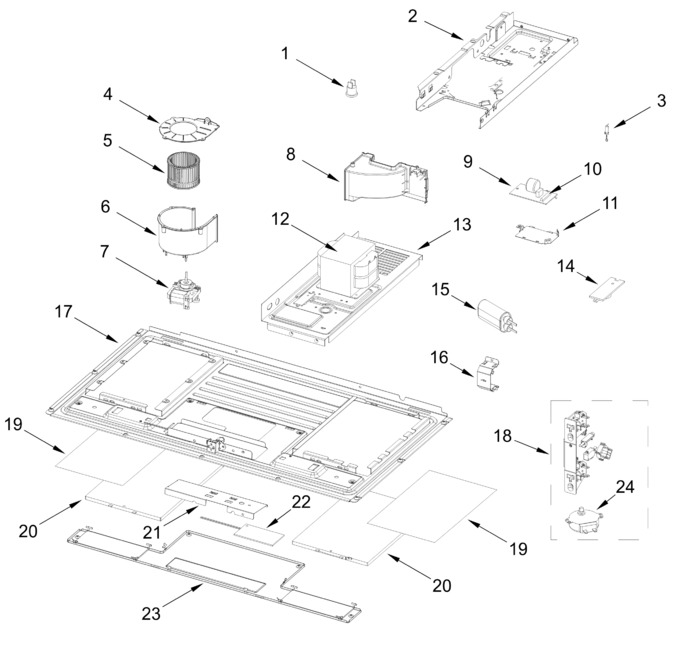

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11378281		Thermostat, Cavity				$ 37.39
2	W11440761		Plate, Chassis		Appelez-nous	-
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W11752349		Cover, Cooling Fan   (Replaces: W11088345)				$ 28.34
5	W11088354		Wheel, Cooling Fan			Immediately	$ 100.03
6	W11213349		Housing, Cooling Fan   (Replaces: W11088352)				$ 81.13
7	W11443154		Motor, Cooling Fan   (Replaces: W11325927)			Immediately	$ 93.05
8	W11088358		Air Guide, Magnetron		Appelez-nous	-
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 56.88
10	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
11	W10313274		Bracket, Noise Filter				$ 32.32
12	W11783302		Transformer, High Voltage   (Replaces: W11755318)				$ 261.48
13	W11164809		Chassis, Transformer				$ 130.06
14	W10536989		Thermistor			Immediately	$ 38.68
15	WPW10574736		Capacitor, High Voltage   (Replaces: W10574736)				$ 179.12
16	W11095808		Bracket, Capacitor		Appelez-nous	-
17	W11159942		Plate, Bottom			Immediately	$ 146.71
18	W11493414		Interlock Assembly (includes Switches)   (Replaces: W11479930)			Immediately	$ 62.22
19	W11322423		Filter, Charcoal   (Replaces: W11284565)			Immediately	$ 35.07
20	W11213913		Filter, Grease   (Replaces: W11206152)			Immediately	$ 37.88
21	W11086295		Reflector, Lamp				$ 78.51
22	W11443139		Lamp, Led   (Replaces: W11384716)				$ 84.81
23	W11206153		Glass Holder Assembly				$ 142.31
24	W11545873		Motor, Door Eject   (Replaces: W11044953)			Immediately	$ 42.71

    View Diagram in Separate Window       Print Part List
