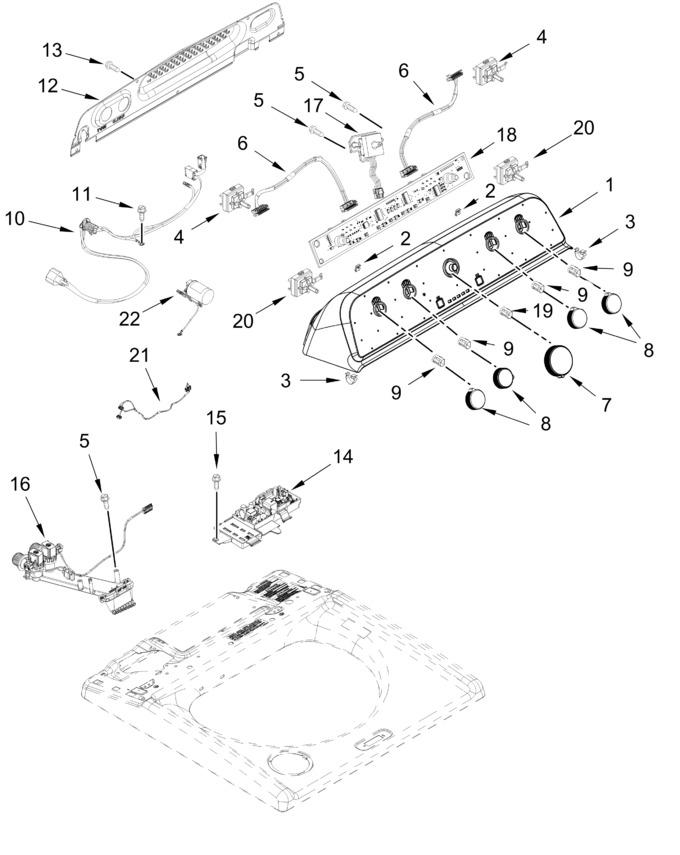

Console And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11795576		Assembly, Console (white)   (Replaces: W11745373)		Appelez-nous	-
2	W11213336		U-nut   (Replaces: W10298336)				$ 7.74
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 179.35
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
6	W11807283		Harness, Upper   (Replaces: W11437973)				$ 47.62
7	W11675852		Knob, Large   (Replaces: W11328381)			Immediately	$ 29.75
8	W11625514		Push To Start Knob (white)   (Replaces: W11398762)			Immediately	$ 35.11
9	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.81
10	W11513259		Power Cord Assembly   (Replaces: W11335102)			Immediately	$ 40.31
11	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
12	W10611544		Panel, Console Rear Cover				$ 324.98
13	W11685943		Screw   (Replaces: W10660565)				$ 14.26
14	W11795777		Appliance Control Unit (acu)   (Replaces: W11751724)			Immediately	$ 382.02
15	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
16	W11513255		Water Inlet Assembly (complete)   (Replaces: W11385821)			Immediately	$ 91.85
17	W11675700		Encoder, Pca   (Replaces: W11609449)				$ 303.71
18	W11675701		Hmi   (Replaces: W11612331)			Immediately	$ 304.75
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
20	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 190.06
21	W11782261		Harness, Water Valve   (Replaces: W11335103)				$ 46.01
22	W11638178		Assembly, Line Filter   (Replaces: W11296733)				$ 82.59
