Diagram for Control Panel And Inner Door Parts
Control Panel And Inner Door Parts

Diagram for Door And Panel Parts
Door And Panel Parts

Diagram for Lower Rack Parts
Lower Rack Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Pump, Washarm And Motor Parts
Pump, Washarm And Motor Parts

Diagram for Third Level Rack And Track Parts
Third Level Rack And Track Parts

Diagram for Tub And Frame Parts
Tub And Frame Parts

Diagram for Upper Rack And Track Parts
Upper Rack And Track Parts

Diagram for Upper Wash And Rinse Parts
Upper Wash And Rinse Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11783423 Console Assembly (black)   (Replaces: W11718780) Special Order $ 311.64

6 W11791509 Control, Electronic   (Replaces: W11773825) Special Order $ 309.11

8 W11755068 Screw   (Replaces: W11714324) Appelez-nous -
10 W11779933 Inner Door Assembly   (Replaces: W11773240) In-Stock Immediately $ 356.54

13 W11772441 Wiring Harness, Inner Door   (Replaces: W11695670) Special Order $ 13.88


    View Diagram in Separate Window     Print Icon   Print Part List

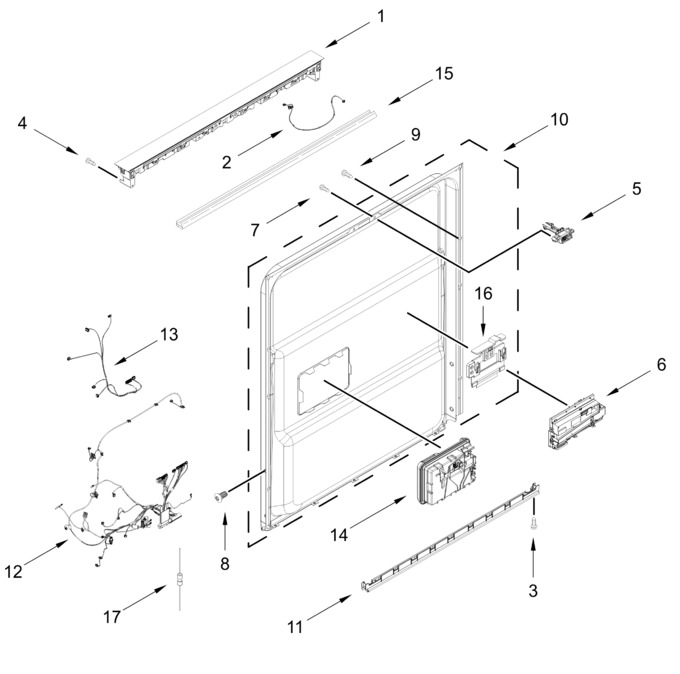

Diagram for KDTS324SJP0
