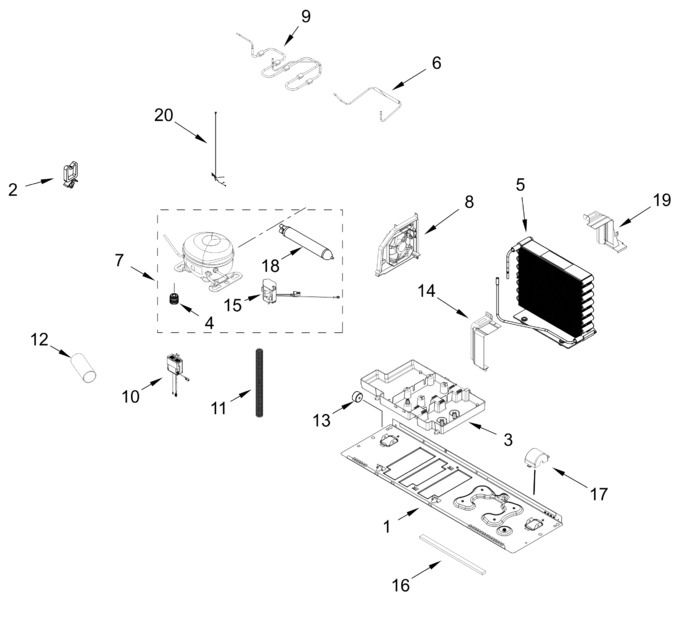

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11787438		Compressor Baseplate   (Replaces: W11543386)		Appelez-nous	-
2	W11233642		Clip   (Replaces: 2223913)		Appelez-nous	-
3	W11787346		Water Tray   (Replaces: W11678106)		Appelez-nous	-
4	W11678963		Compressor Grommet   (Replaces: W10806346)				$ 8.51
5	W11787355		Condenser Assembly   (Replaces: W11668494)		Appelez-nous	-
6	W11787358		Tube Assembly   (Replaces: W11614556)		Appelez-nous	-
7	W11803377		Compressor   (Replaces: W11754926)			Immediately	$ 304.42
8	W11787365		Condenser Fan Assembly   (Replaces: W11613932)				$ 95.85
9	W11787845		Precooler Assembly   (Replaces: W11610529)		Appelez-nous	-
10	W11787357		Inverter Box Assembly   (Replaces: W11754928)				$ 342.23
11	W11787385		Drain Tube Extension   (Replaces: W11559668)				$ 62.27
12	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 14.77
13	W10774846		Roller				$ 90.76
14	W11807406		Front Shroud   (Replaces: W11613272)		Appelez-nous	-
15	W11823809		Inverter Connector Cover   (Replaces: W11682571)		Appelez-nous	-
16	W11807409		Baseplate Gasket   (Replaces: W11642492)		Appelez-nous	-
17	W11787966		Roller Cover   (Replaces: W11613273)		Appelez-nous	-
18	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
19	W11807413		Rear Shroud   (Replaces: W11611636)		Appelez-nous	-
20	W11790661		Assembly, Wire Harness   (Replaces: W11728244)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARIDB5BB2DB0DC0B155401A5AB1451BE2DB		65 Grams (r600a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
