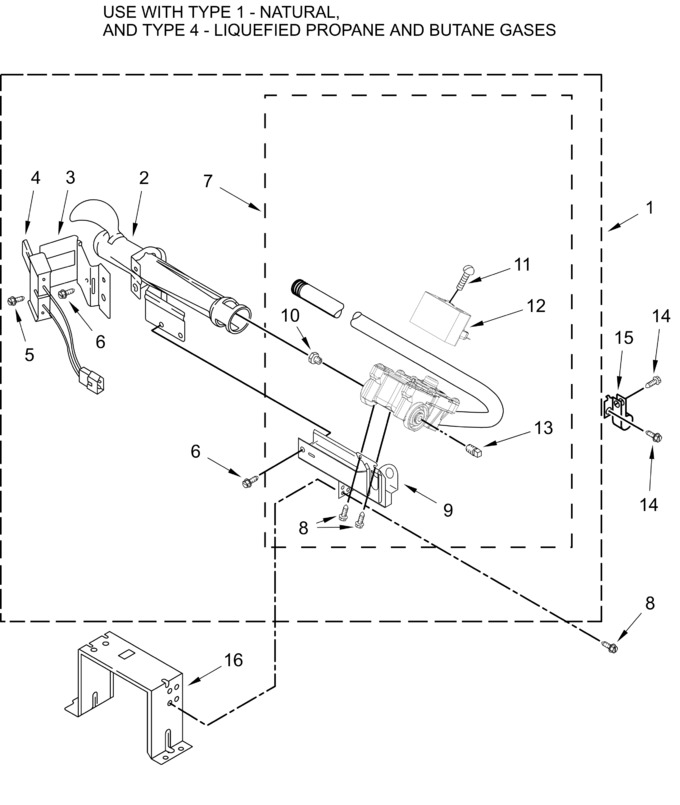

SELECT A DIAGRAM

Bulkhead Parts


Burner Assembly Parts


Cabinet Parts


Door Parts


Optional Parts (not Included)


Top And Console Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11652258		Burner Assembly 60 Hz.   (Replaces: W11564941)			Immediately	$ 413.41
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	W11646259		Valve, Gas 60 Hz. (complete)   (Replaces: W11564944)				$ 368.92
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	3389871		Base, Burner				$ 83.25
10	ARI3222E1C2658FA4FD7DC3E86C50E9F828		Orifice, Burner		Appelez-nous	-
11	326049536		Screw		Appelez-nous	-
12	WPW10328463		Coil (60 Hz)   (Replaces: W10328463)			Immediately	$ 79.02
13	W10295523		Pipe Plug		Appelez-nous	-
14	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
15	3387561		Clamp, Pipe		Appelez-nous	-
16	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
	ARI8A46BA2C7F604FCE98147E787988E51A		Ba-170		Appelez-nous	-
	W11581317		Kit, Lp Gas Dryer Conversion			Immediately	$ 93.17
	WP15418		Orifice (type 1, Natural)   (Replaces: 15418)				$ 37.32
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
