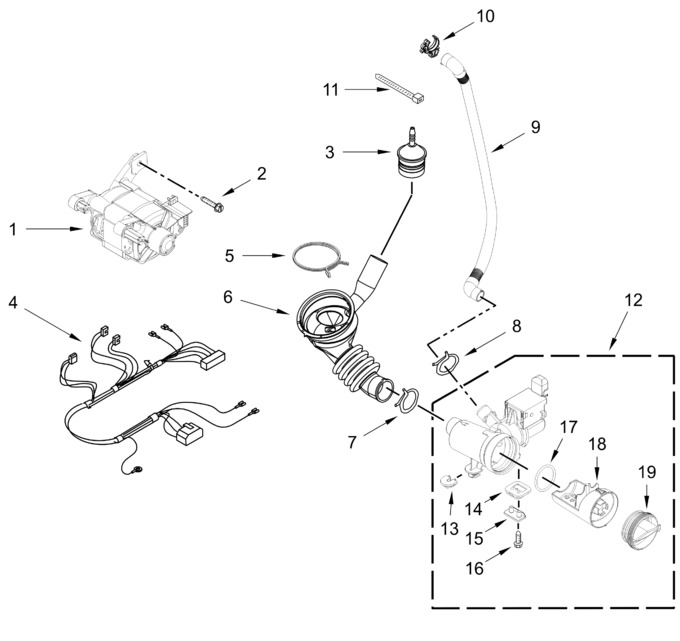

Pump And Motor Parts
Top And Cabinet Parts
Tub And Basket Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11191299 | Motor, Drive (Replaces: W10811032) |
|
$ 456.72 | |||||
| 2 | 8540134 | Bolt, Motor |
|
$ 14.12 | |||||
| 3 | WPW10405608 | Trap, Air (Replaces: W10405608) |
|
Immediately | $ 7.91 | ||||
| 4 | W10364668 | Harness, Motor |
|
- | |||||
| 5 | WP696392 | . Clamp (Replaces: 251971304015) |
|
$ 9.08 | |||||
| 6 | W11366249 | Hose (tub To Pump) (Replaces: W10609566) |
|
Immediately | $ 51.94 | ||||
| 7 | W10273036 | Clamp, Hose |
|
$ 16.28 | |||||
| 8 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 9 | WPW10272563 | Hose, Drain Inner (Replaces: W10272563) |
|
$ 30.71 | |||||
| 10 | 8182209 | Retainer, Drain Hose (Replaces: W10003290) |
|
$ 21.60 | |||||
| 11 | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| 12 | W11129524 | Pump (complete) (Replaces: W10731758) |
|
$ 131.33 | |||||
| 13 | W10034820 | Foot, Rubber (slider) |
|
$ 13.43 | |||||
| 14 | W10728444 | Foot, Rubber (lock) |
|
- | |||||
| 15 | 8540033 | Cap, Lock Foot |
|
$ 18.88 | |||||
| 16 | 8533964 | Screw, Ventilation |
|
$ 12.60 | |||||
| 17 | W10391451 | Seal, Filter Cap |
|
Immediately | $ 19.43 | ||||
| 18 | W10391445 | Filter, Pump |
|
$ 58.30 | |||||
| 19 | W10391446 | Cap, Filter |
|
$ 24.40 |
