SELECT A DIAGRAM

Bulkhead Parts


Burner Assembly Parts


Cabinet Parts


Door Parts


Optional Parts (not Included)


Top And Console Parts

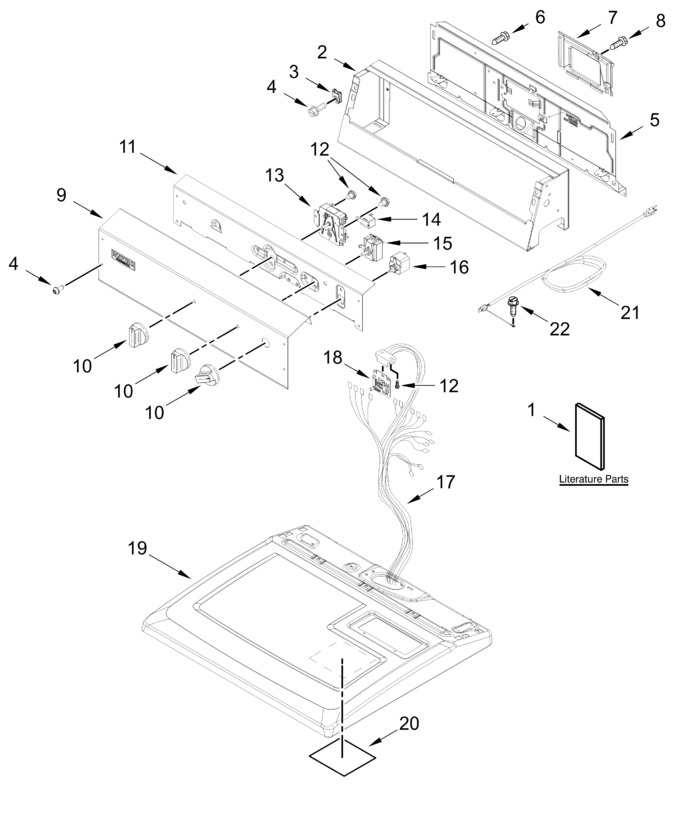

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11124005		Console				$ 238.42
3	WPW10131123		U-nut   (Replaces: W10131123)				$ 8.10
4	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
5	W10863352		Panel, Rear (console)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
7	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
8	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
9	W11654025		Fascia   (Replaces: W11547354)				$ 251.45
10	ARI848C38C91FCB0189D65C35746C884E36		Knob		Appelez-nous	-
11	W11547331		Bracket, Back		Appelez-nous	-
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
13	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
14	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
15	W11106324		Switch, Rotary (5 Pos)   (Replaces: 3405155)				$ 235.13
16	W11654026		Switch, Push-to-start   (Replaces: W11613271)				$ 69.65
17	W11551562		Harness, Main		Appelez-nous	-
18	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
19	ARIA4FFDCF0DC1F31B9ACAF295D75B51D00		Top		Appelez-nous	-
20	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 30.95
21	W11222083		Cord, Power   (Replaces: W10869141)				$ 126.62
22	W10850756		Screw   (Replaces: W10773242)				$ 8.20
	W10772880		Top (white)				$ 175.01
	W11601608		Quick Start Guide		Appelez-nous	-
	W11601611		Installation Instructions		Appelez-nous	-
	W11601607		Use And Care Guide		Appelez-nous	-
	W11601605		Wiring Diagram		Appelez-nous	-
	W11654027		Knob (stainless)   (Replaces: W11567082)				$ 79.82

    View Diagram in Separate Window       Print Part List
