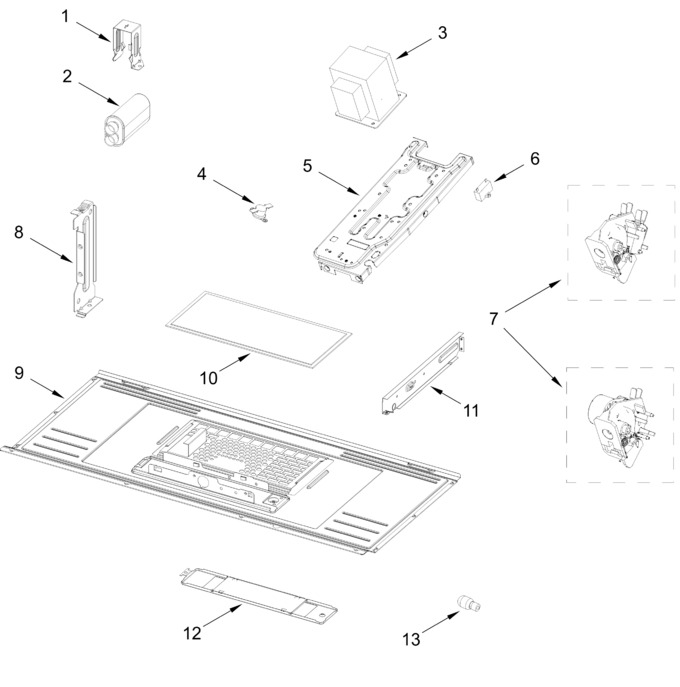

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 2 | WPW10574736 | Capacitor, High Voltage (Replaces: W10574736) |
|
$ 179.12 | |||||
| 3 | W11759254 | Transformer, High Voltage (Replaces: W11739997) |
|
$ 115.46 | |||||
| 4 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 43.63 | ||||
| 5 | W11520831 | Chassis |
|
Immediately | $ 65.88 | ||||
| 6 | W11405832 | Capacitor, Hood Motor |
|
$ 28.60 | |||||
| 7 | W11551558 | Interlock Assembly (includes Switches) (Replaces: W11433682) |
|
Immediately | $ 33.70 | ||||
| 8 | W10313275 | Bracket, Top Cavity |
|
$ 35.62 | |||||
| 9 | W11295401 | Panel, Bottom |
|
$ 134.70 | |||||
| 10 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 15.42 | ||||
| 11 | W11295335 | Support, Ntc |
|
- | |||||
| 12 | W11295403 | Cover, Lamp |
|
- | |||||
| 13 | W11520384 | Lamp, Halogen |
|
Immediately | $ 10.41 |
