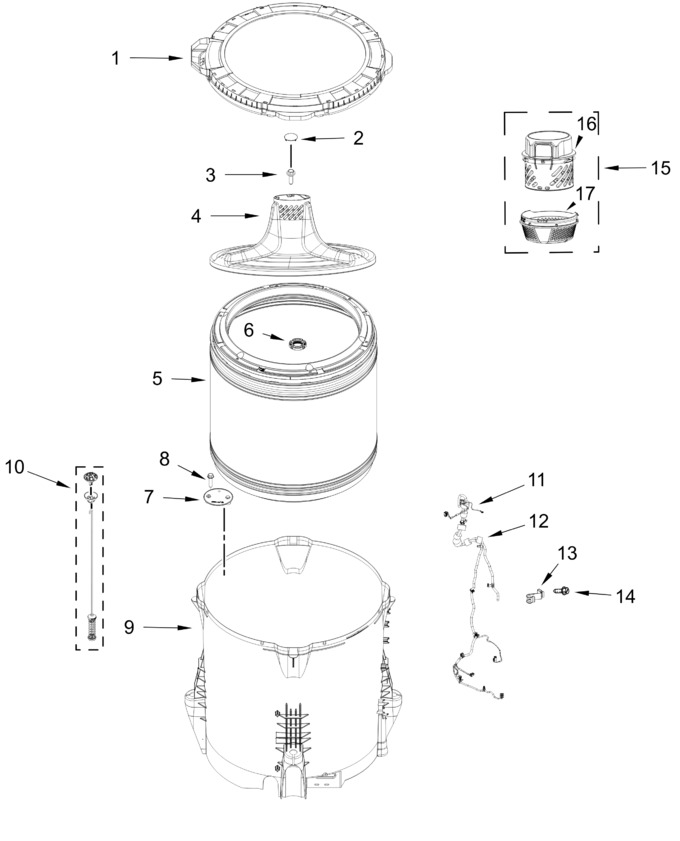

Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513258 | Tub Ring (Replaces: W11352092) |
|
$ 168.25 | |||||
| 2 | W11795229 | Cap, Impeller (Replaces: W11683003) |
|
- | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.13 | ||||
| 4 | W11795574 | Impeller (washplate) (Replaces: W11682555) |
|
$ 110.51 | |||||
| 5 | W11513243 | Basket Assembly (Replaces: W11459626) |
|
$ 424.22 | |||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11568797 | Drain Pump Filter (Replaces: W11089264) |
|
Immediately | $ 26.79 | ||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 9 | W11219115 | Tub |
|
$ 368.66 | |||||
| 10 | W11396716 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11171694) |
|
Immediately | $ 201.30 | ||||
| 11 | W11643701 | Harness, Lower (Replaces: W11335100) |
|
Immediately | $ 88.18 | ||||
| 12 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 | ||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.35 | ||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 15 | W11795228 | Assembly, Filter (Replaces: W11681255) |
|
$ 57.26 | |||||
| 16 | W11795229 | Frame, Filter (Replaces: W11682994) |
|
- | |||||
| 17 | W11636601 | Cup, Filter (Replaces: W11553580) |
|
- |
