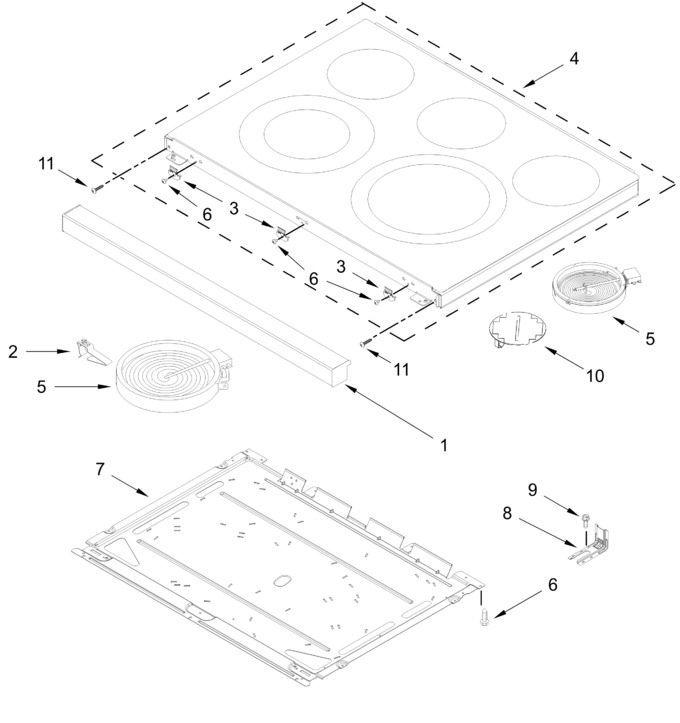

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730060		Bullnose (stainless)   (Replaces: W11353382)			Immediately	$ 391.43
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11814771		Cooktop (black, Includes Cooktop Bracket)   (Replaces: W11788871)		Appelez-nous	-
5	W10823727		Element, Dual (3000w)   (Replaces: W10711900)			Immediately	$ 342.63
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 225.62
	W11809824		Harness, Main   (Replaces: W11789204)		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11517959		Element, (dual 3000w)   (Replaces: W11282542)			Immediately	$ 146.68
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11809826		Harness, Cooktop   (Replaces: W11710147)		Appelez-nous	-
	W11781582		Harness, Rear   (Replaces: W11385156)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	W11729952		Harness, Hidden Bake   (Replaces: W11585874)				$ 61.80
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
