Diagram for Burner Box, Griddle, And Grill Parts
Burner Box, Griddle, And Grill Parts

Diagram for Cooktop, Burner, Griddle, And Grill Parts
Cooktop, Burner, Griddle, And Grill Parts

No Diagram Image Available
Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

2 W11337062 Orifice Holder Assembly   (Replaces: W10892771) In-Stock Immediately $ 128.25

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11580024 Igniter   (Replaces: W11238758) In-Stock Immediately $ 23.66

5 W11516449 Grate Assembly (black)   (Replaces: W11291180) Special Order $ 265.06

6 W11516484 Grill Grate Assembly   (Replaces: W11291185) Special Order $ 379.68

7 W11516462 Grate Assembly (black)   (Replaces: W11291182) Special Order $ 265.07

8 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

9 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

10 W10294500 Lens, Indicator Light Special Order $ 7.69

11 W11317889 Bezel (stainless)   (Replaces: W11090284) Special Order $ 106.87

12 W11317890 Bezel, Griddle (stainless)   (Replaces: W11104967) Special Order $ 109.56

13 W11328971 Cap, Burner (black, Set Of 4)   (Replaces: W11121391) Special Order $ 173.40

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11317536 Knob, Griddle (stainless)   (Replaces: W10891923) Special Order $ 148.63

16 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

17 W11328566 Grill Box Assembly   (Replaces: W11174429) Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11316701 Panel, Center Cooktop   (Replaces: W11038241) Special Order $ 502.01

20 7101P33860 Screw Appelez-nous -
21 W11355761 Trim, Island Appelez-nous -
22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11649099 Panel, Console   (Replaces: W11222275) Appelez-nous -
24 W11791681 Knob, Dual (stainless)   (Replaces: W11560135) Appelez-nous -
25 W11602621 Griddle Module Assembly   (Replaces: W10891745) In-Stock Immediately $ 1,547.02

26 W11328568 Grill Burner Assembly   (Replaces: W11120976) Special Order $ 848.94

27 W11640240 Grill Orifice Holder Assembly   (Replaces: W11419279) Appelez-nous -
28 7101P42660 Screw Appelez-nous -
29 W10291193 Trim, L-strip Appelez-nous -
30 W11328571 Electrode, Grill   (Replaces: W11174598) Appelez-nous -
31 W11419282 Orifice, Grill (18k) Appelez-nous -
32 W10674068 Screw Special Order $ 24.39

33 W11805839 Knob, Grill (stainless)   (Replaces: W11560137) Appelez-nous -
W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

ARI24AF0AF28B4085468927C2336952C26F (left Front And Right Center Front) Appelez-nous -
W10892440 Orifice, Main (7.2k) Special Order $ 99.86

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86

W11337063 Orifice Holder Assembly   (Replaces: W10892486) In-Stock Immediately $ 128.27

ARIF51CD619278F411F0D01263DCFA5380D (assembly Breakdown Shown On Burner Box Page) Appelez-nous -
ARI86CC442F7E3B2AFAEE580E427DF61ED9 (all But Right Center Rear) Appelez-nous -
W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

ARI96BA0D36FA6A631E80C7BFCE86BF12CD (left Center) Appelez-nous -
ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI2DF9F568FCE4D6018097574F1022E13B (right Center Rear) Appelez-nous -
W11238756 Igniter In-Stock Immediately $ 67.96

W11337065 Orifice Holder Assembly   (Replaces: W10892772) Special Order $ 128.73


    View Diagram in Separate Window     Print Icon   Print Part List

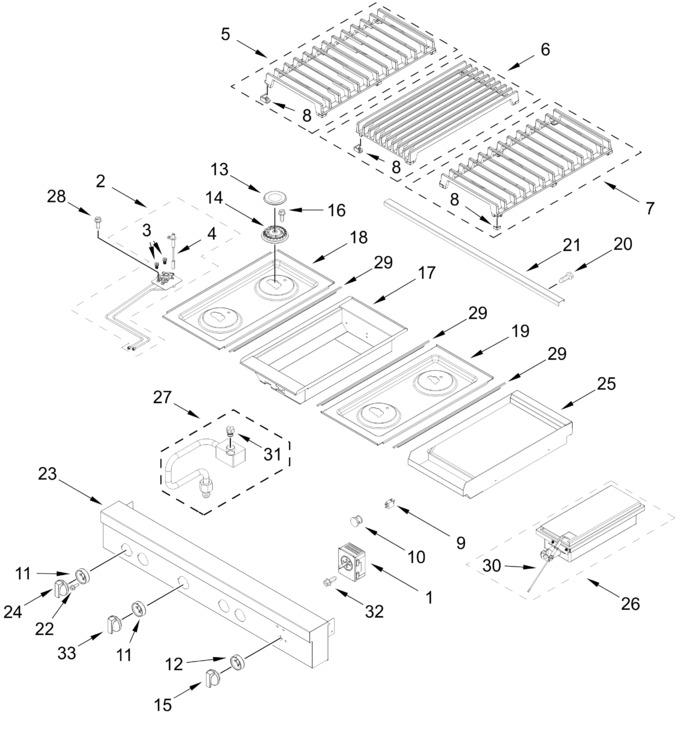

Diagram for JGCP748HM02
