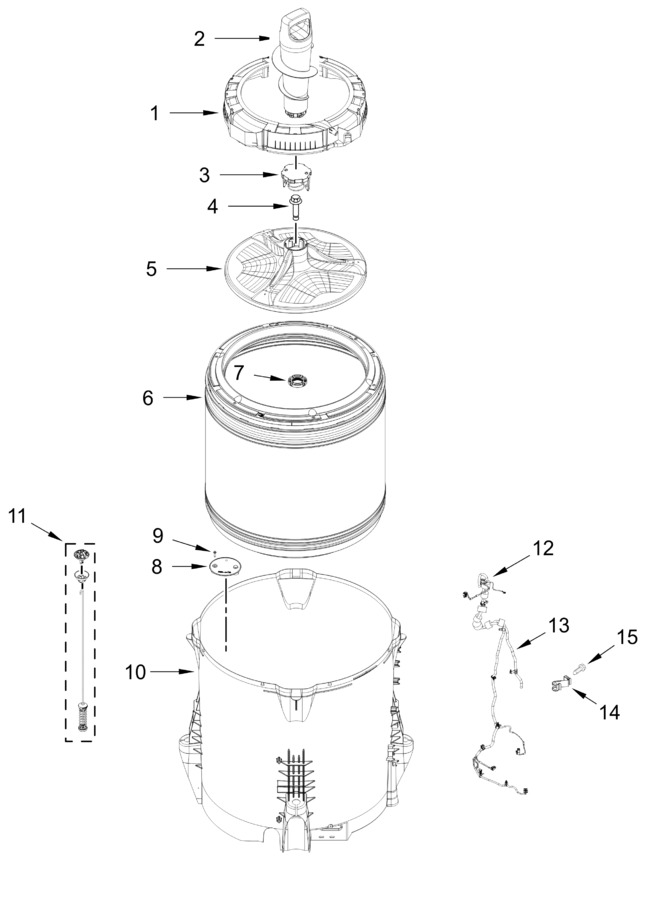

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513258 | Tub Ring (Replaces: W11352092) |
|
$ 176.66 | |||||
| 2 | W11614636 | Agitator (Replaces: W11395428) |
|
Immediately | $ 115.57 | ||||
| 3 | W11510462 | Cap, Impeller (Replaces: W11395423) |
|
Immediately | $ 44.77 | ||||
| 4 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 5 | W11510461 | Impeller (washplate) (Replaces: W11308900) |
|
Immediately | $ 162.19 | ||||
| 6 | W11513243 | Basket Assembly (Replaces: W11459626) |
|
$ 445.43 | |||||
| 7 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 8 | W11568797 | Drain Pump Filter (Replaces: W11089264) |
|
Immediately | $ 28.13 | ||||
| 9 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 10 | W11219115 | Tub |
|
$ 387.09 | |||||
| 11 | W11396716 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11171694) |
|
Immediately | $ 211.37 | ||||
| 12 | W11643701 | Harness, Lower (Replaces: W11335100) |
|
Immediately | $ 88.18 | ||||
| 13 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 | ||||
| 14 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.72 | ||||
| 15 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| ARI124E2B0AC77990EA4B42BFF93536A13D | (agitator/impeller Cap Interchangeable) |
|
- |
