SELECT A DIAGRAM

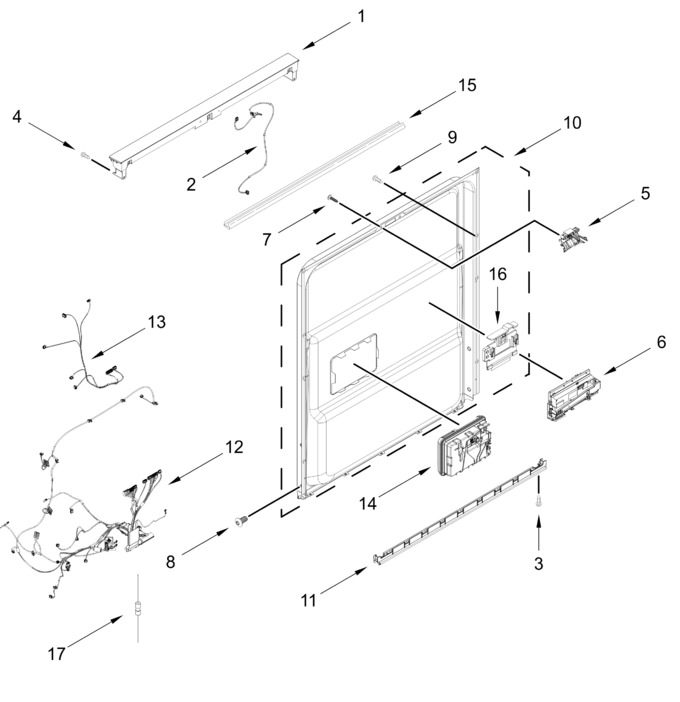

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11632693		Cap, Console (black)   (Replaces: W11591421)				$ 98.14
2	W11747582		Jumper, Ui   (Replaces: W11387866)			Immediately	$ 16.77
6	W11791404		Control, Electronic   (Replaces: W11773826)				$ 298.65
8	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
10	W11779933		Inner Door Assembly   (Replaces: W11773240)			Immediately	$ 356.54
13	W11772441		Wiring Harness, Inner Door   (Replaces: W11695670)				$ 13.88

    View Diagram in Separate Window       Print Part List
