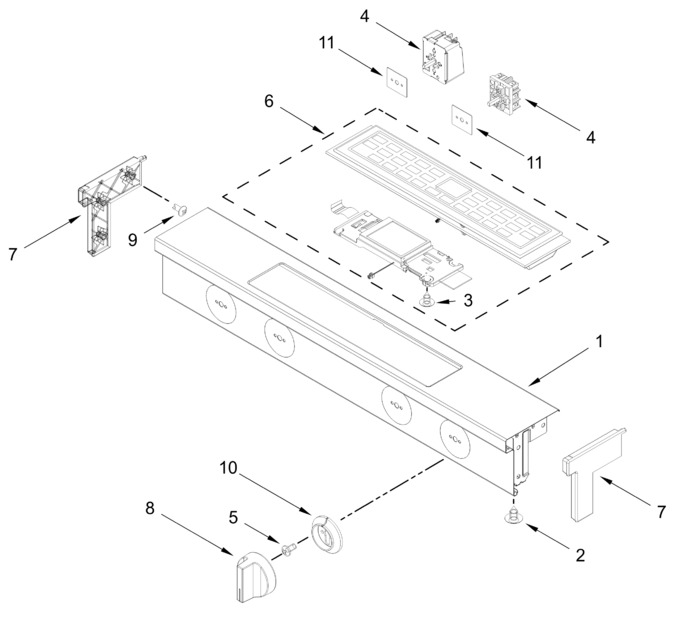

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11784069		Console (black)   (Replaces: W11698865)				$ 409.15
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
5	W11846982		Screw   (Replaces: W10498399)				$ 11.75
6	W11812077		User Interface   (Replaces: W11700745)		Appelez-nous	-
7	W11770979		Console, Endcap (black, Left)   (Replaces: W11420182)				$ 67.37
8	W11795507		Knob (single, Black)   (Replaces: W11730760)		Appelez-nous	-
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
10	W11729943		Bezel (black)   (Replaces: W11635853)				$ 62.97
11	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11795506		Knob (dual, Black)   (Replaces: W11730761)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11770980		Console, Endcap (black, Right)   (Replaces: W11420180)		Appelez-nous	-
