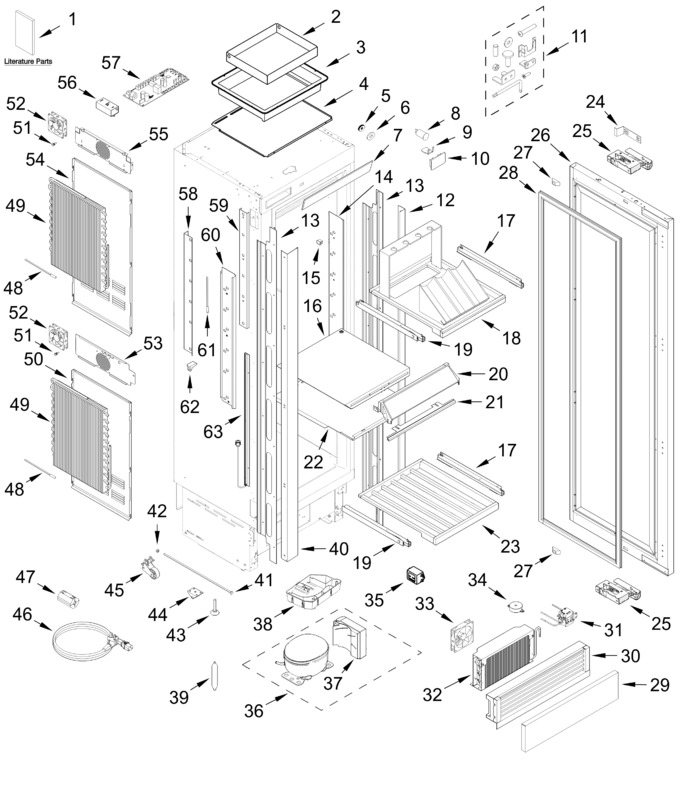

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11776665 | Aluminum Shield, Control Board (Replaces: W11773988) |
|
- | |||||
| 3 | W11776832 | Cover, Control Board (Replaces: W11776831) |
|
- | |||||
| 4 | W11776808 | Ceiling Cover, Upper Compartment (Replaces: W11776807) |
|
- | |||||
| 5 | W11803450 | Nut, Knurled Plastic (Replaces: W11803243) |
|
- | |||||
| 6 | W11803449 | Washer, Plastic (Replaces: W11803242) |
|
- | |||||
| 7 | W11776819 | Panel, Decorative (Replaces: W11776818) |
|
- | |||||
| 8 | W11686990 | Reed Switch, Door (Replaces: W11633505) |
|
$ 177.30 | |||||
| 9 | W11776698 | Clip, Reed Switch (Replaces: W11774114) |
|
- | |||||
| 10 | W11776702 | Cover, Reed Switch (Replaces: W11774323) |
|
- | |||||
| 11 | W11776524 | Hardware Kit, Overlay Mounting (Replaces: W11773800) |
|
- | |||||
| 12 | W11776878 | Cover, Front Corner (opposite The Hinge Side) (Replaces: W11774060) |
|
- | |||||
| 13 | W11804903 | Trim, Side (Replaces: W11804819) |
|
- | |||||
| 14 | W11776697 | Pillar, Front Right (Replaces: W11774095) |
|
- | |||||
| 15 | W11776662 | Plug, Pillar Hole (Replaces: W11773831) |
|
- | |||||
| 16 | W11776836 | Central Divider (Replaces: W11776835) |
|
- | |||||
| 17 | W11776658 | Slide, Wine Rack (right Hand) (Replaces: W11773805) |
|
- | |||||
| 18 | W11776873 | Rack, Bottle Display (Replaces: W11776872) |
|
- | |||||
| 19 | W11776657 | Slide, Wine Rack (left Hand) (Replaces: W11773804) |
|
- | |||||
| 20 | W11776834 | User Interface (Replaces: W11776833) |
|
- | |||||
| 21 | W11776806 | Seal, Compartment Divider (Replaces: W11776805) |
|
- | |||||
| 22 | W11776810 | Ceiling Cover, Lower Compartment (Replaces: W11776809) |
|
- | |||||
| 23 | W11776822 | Rack, Wine (Replaces: W11776820) |
|
- | |||||
| 24 | W11776703 | Cover, Hinge Socket (Replaces: W11774329) |
|
- | |||||
| 25 | W11633300 | Hinge, Door (left Swing) |
|
- | |||||
| 26 | W11776812 | Door Assembly (left Swing, Includes Door Gasket) (Replaces: W11776811) |
|
- | |||||
| 27 | W11633499 | Bumper, Door |
|
- | |||||
| 28 | W11776817 | Gasket, Door (Replaces: W11776816) |
|
- | |||||
| 29 | W11803447 | Toe Kick (Replaces: W11803240) |
|
- | |||||
| 30 | W11776828 | Grille, Lower (Replaces: W11776827) |
|
- | |||||
| 31 | W11776527 | Three Way Valve (Replaces: W11773801) |
|
- | |||||
| 32 | W11776826 | Condenser (Replaces: W11776824) |
|
- | |||||
| 33 | W11776481 | Fan, Condenser (Replaces: W11773657) |
|
- | |||||
| 34 | W11686782 | Buzzer (Replaces: W11633334) |
|
- | |||||
| 35 | W11776529 | Filter, Line (Replaces: W11773802) |
|
- | |||||
| 36 | W11685634 | Compressor (includes Inverter) (Replaces: W11633561) |
|
- | |||||
| 37 | W11633574 | Inverter |
|
- | |||||
| 38 | W11633331 | Tray, Defrost Drain |
|
- | |||||
| 39 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 40 | W11776877 | Cover, Front Corner (hinge Side) (Replaces: W11773993) |
|
- | |||||
| 41 | W11776654 | Bolt, Leveling (Replaces: W11773803) |
|
- | |||||
| 42 | W11776663 | Nut, Locking (Replaces: W11773835) |
|
- | |||||
| 43 | W11686781 | Leg, Leveling (Replaces: W11633325) |
|
$ 156.23 | |||||
| 44 | W11686780 | Roller, Front (Replaces: W11633324) |
|
Immediately | $ 243.18 | ||||
| 45 | W11686779 | Roller, Rear (Replaces: W11633323) |
|
Immediately | $ 245.93 | ||||
| 46 | W11633333 | Cord, Power |
|
- | |||||
| 47 | W11803448 | Ferrite Core, Clamp On (Replaces: W11803241) |
|
- | |||||
| 48 | W11776488 | Thermistor, Metal (Replaces: W11773759) |
|
- | |||||
| 49 | W11776502 | Evaporator (Replaces: W11773762) |
|
- | |||||
| 50 | W11774359 | Cover, Lower Evaporator (Replaces: W11773649) |
|
- | |||||
| 51 | W11776510 | Grommet, Fan (Replaces: W11773774) |
|
- | |||||
| 52 | W11776508 | Fan, Evaporator (Replaces: W11773773) |
|
- | |||||
| 53 | W11803451 | Support, Lower Evaporator Fan (Replaces: W11803244) |
|
- | |||||
| 54 | W11774352 | Cover, Upper Evaporator (Replaces: W11773647) |
|
- | |||||
| 55 | W11803453 | Support, Upper Evaporator Fan (Replaces: W11803246) |
|
- | |||||
| 56 | W11776504 | Power Supply, Led (Replaces: W11773764) |
|
- | |||||
| 57 | W11776505 | Control, Electronic (Replaces: W11773770) |
|
- | |||||
| 58 | W11776680 | Pillar, Rear (left Side) (Replaces: W11774081) |
|
- | |||||
| 59 | W11776679 | Pillar, Rear (opposite The Hinge Side) (Replaces: W11774078) |
|
- | |||||
| 60 | W11776696 | Pillar, Front Left (Replaces: W11774093) |
|
- | |||||
| 61 | W11633336 | Thermistor, Plastic |
|
$ 113.73 | |||||
| 62 | W11804904 | Support, Central Divider (Replaces: W11804820) |
|
- | |||||
| 63 | W11776520 | Light Strip, Led (Replaces: W11773797) |
|
- | |||||
| W11794672 | Tech Sheet |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARID19E8A45FC136F26803FCAC2CCB7051C | 55 Grams (r600a) |
|
- | ||||||
| W11763828 | Owner's Manual |
|
- |
